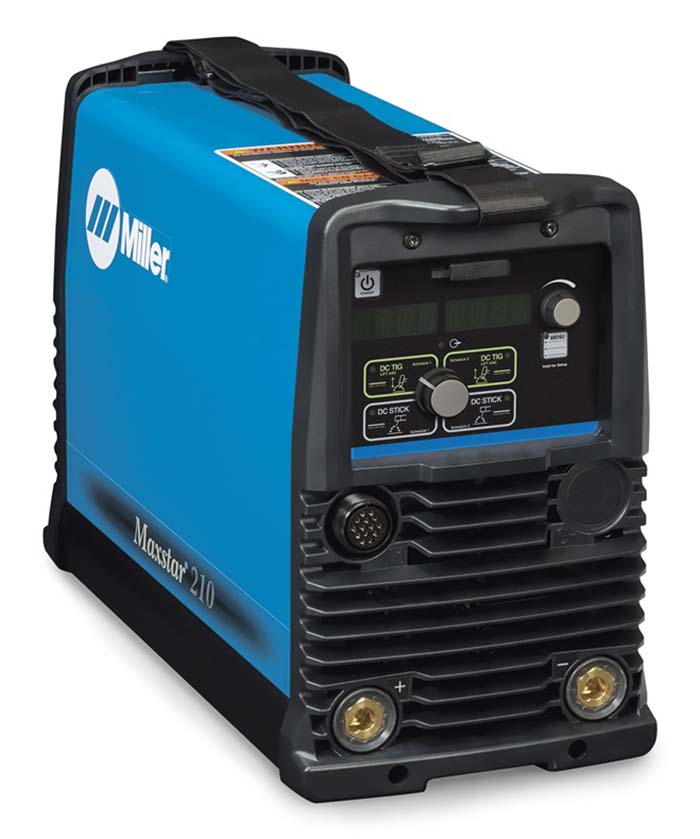

MAXSTAR 210 STR 120-460VAC 50/60HZ
110/115/120 V, 208 V, 220/230/240 V, 380/400 V Maxstar® 210 STR with QuietPulse™, Pro-Set™ Feature, and Base and Deluxe Models Available. This unit provides maximum flexibility by automatically connecting to any input power, ensuring top DC Stick welding performance.
| Technical Specifications | ||
|---|---|---|
| Processes | DC TIG (GTAW), Pulsed TIG (GTAW-P) | |
| Industrial Applications: |
Precision fabrication, Petro chemical, Aerospace, Food/beverage industry, Dairy, Shipboard
|
|
| Rated input voltage / Number of phases: |
120–480 V / 1-phase or 3-phase
|
|
| Rated frequency: | 50/60 Hz | |
| Input amperage: |
- TIG, 3-phase: 14 A (208 V), 12 A (240 V), 7 A (400 V), 6 A (480 V)
- TIG, 1-phase: 24 A (208 V), 20 A (240 V), 12 A (400 V), 10 A (480 V)
- TIG, 1-phase 120 V: 22 A
- Stick, 3-phase: 15 A (208 V), 13 A (240 V), 8 A (400 V), 6 A (480 V)
- Stick, 1-phase: 26 A (208 V), 22 A (240 V), 13 A (400 V), 11 A (480 V)
- Stick, 1-phase 120 V: 23 A
|
|
| Rated input capacity: |
- TIG, 3-phase: 5.2 kVA / 4.9 kW
- TIG, 1-phase: 4.9 kVA / 4.9 kW
- TIG, 1-phase 120 V: 2.6 kVA / 2.6 kW
- Stick, 3-phase: 5.5 kVA / 5.2 kW
- Stick, 1-phase: 5.3 kVA / 5.3 kW
- Stick, 1-phase 120 V: 2.8 kVA / 2.8 kW
|
|
| Rated output current: |
- TIG: 210 A; 125 A at 120 V
- Stick: 160 A; 90 A at 120 V
|
|
| Rated output voltage: |
- TIG: 18.4 V; 15 V at 120 V
- Stick: 26.4 V; 23.6 V at 120 V
|
|
| Rated duty cycle: |
- TIG: 60% at 210 A; 40% at 150 A (120 V)
- Stick: 60% at 160 A; 60% at 90 A (120 V)
|
|
| Rated output no-load voltage: |
Stick: 80 VDC (11 VDC low OCV sense voltage)
|
|
| Output current range: |
Stick: 5–210 A; 5–100 A at 120 V
(Maxstar 210 STR: 10–210 A / 10–100 A at 120 V)
|
|
| Enclosure protection class: |
IP23
|
|
| Dimensions (W × D × H): |
8.6 × 19.5 × 13.6 in. (219 × 495 × 346 mm)
|
|
| Weight: |
STR: 36 lb. (16.3 kg); Base/DX: 38 lb. (17.2 kg)
|
|
CÁC TÍNH NĂNG
QuietPulse™QuietPulse is activated by changing the waveshape for DC pulse welding, creating a slower, more fluid transition between the background and peak amperage to create the least possible audible noise.
|
Pro-Set™ FeatureThis feature eliminates the guesswork when setting weld parameters. Use Pro-Set when you want the speed, convenience and confidence of pre-set controls. Simply select the feature and adjust until Pro-Set appears on the display. The Pro-Set feature is available for Balance, Frequency, Pulse and DIG parameters.
|
Base and Deluxe Models AvailableBase model provides essential TIG and Stick functions and provides operator-friendly, menu-driven features. The DX model adds extended ranges to sequencer and full trigger options, preflow and pulser functions.
|
Upgradeable and ExpandableFront panel memory card data port provides the ability to easily upgrade software and expand product features. Visit MillerWelds.com/tigsoftware for the latest software upgrades and expansions.
|
Hot Start™ TechnologyAdaptive control provides positive arc starts without sticking.
|
Auto-Line™ TechnologyAllows hookup to either single-phase or three-phase primary input voltage, 208-600 volts dependent on the machine, with no manual linking, providing convenience in any job setting. An ideal solution for dirty or unreliable input power. |
Warrantied: 3 years
