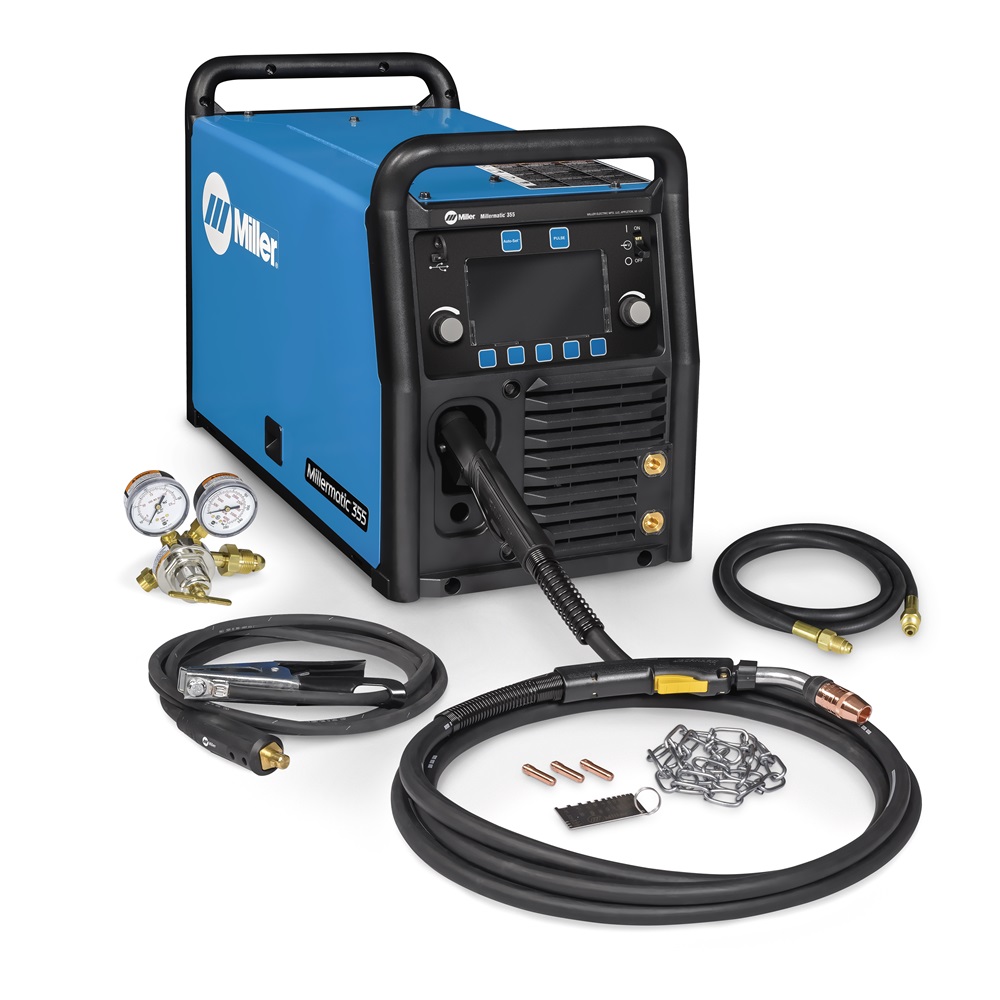

MILLERMATIC® 355-907808 MILLER WELDING MACHINE
About The Millermatic® 355
208-575 V MIG and Pulsed MIG welder. Welds up to 1/2 in. aluminum, stainless and mild steel. Easy-to-understand interface, 7 in. Color LCD screen featuring Auto-Set™ Elite, Electronic Parameter chart, and Trigger Program Select.
| Technical Specifications | ||
|---|---|---|
| Processes | MIG (GMAW) Pulsed MIG (GMAW-P) Flux-cored (FCAW) | |
| Industrial Applications |
| |
| Input Power | 3- or 1-phase, 208/240/460/575 V, 50/60 Hz | |
| Amperage Range | 20–400 A (3-phase and 1-phase 460/575 V), 20–350 A (1-phase, 208/240 V) | |
| Rated Output | 310 A at 29.5 V, 60% duty cycle | |
| Wire Feed Speed | 50–800 ipm (1.3–20.3 m/min.) | |
| Net Weight | 74 Kg | |
| Dimensinos (HxWxD) | 813 x 349 x 1,143 mm | |
Features

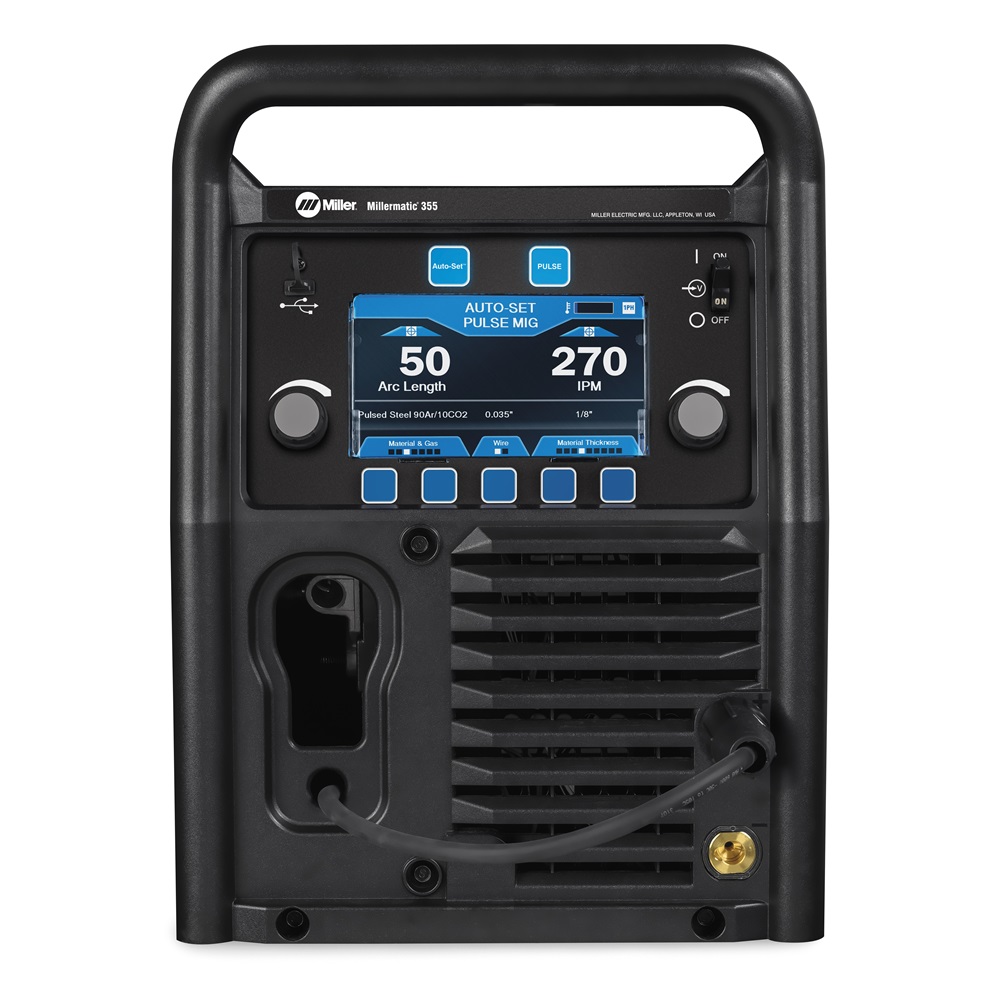

| Easy-to-understand interface 7-inch color LCD display ensures proper machine setup and parameter selection, reducing setup time and increasing weld time | Pulsed MIG welding delivers higher quality Lower heat input for less distortion on thin materials, less spatter minimizes post weld grinding and rework allowing more welding time. Perform welding applications that couldn’t be done in the past. | Trigger Program Select Increases productivity by eliminating the need to go back to the machine to change weld settings. Simply tap gun trigger to select the program. | Versatility Capabilities include MIG, pulsed MIG and flux-cored welding. |
| Bernard BTB Gun 300 A MIG gun with AccuLock™ S consumables AccuLock liner loads from the front and locks at the front and back to insure proper alignment for flawless wire feed path. New rubber overmold and ball -and-socket handle design improves grip and reduces welder fatigue. New Industrial Bernard AccuLock™ S contact tips provide superior Spray and Pulsed MIG arc performance. | Portability - Machine only weighs 99 lb Weight is reduced by more than 40 percent compared to the Millermatic 350P. | Optional EZ-Latch™ running gear Operators no longer need to use lift truck to load machine and running gear into the truck. Latches secure machine to running gear. Simply loosen the latch retaining knob and rotate latches to disengage machine from running gear for easy portability | Generator Compatible The Millermatic 355 will be able to operate and provide full output when powered by generators with 19000 Watt (19K) output or higher. Limited output will occur when used with smaller generators. |

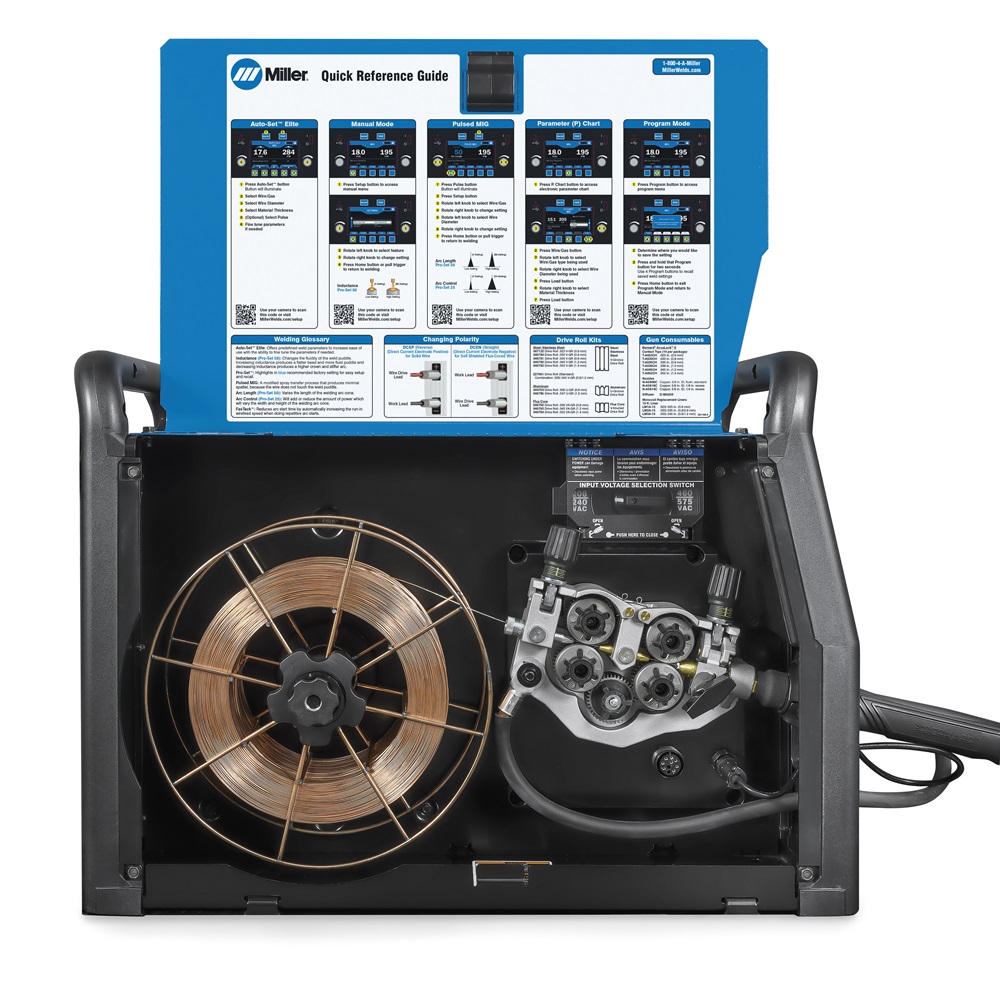

| Locks and Limits Provides control of the weld parameter ranges minimizing deviations from the welding procedure specifications (WPS). | USB Port Provides the ability to easily update software, back-up settings and transfer saved weld programs from one unit to the next. | Input Voltage Selection Switch Provides versatility to utilize any single- or three-phase North American power (208, 240, 460, 575 V). Location in the wire drive compartment provides the ability to manually switch input voltage. An error will display if wrong input selected. | Auto-Set™ Technology Offers predefined weld settings to increase ease of use and ensure that the job is done right for operators of all skill levels. |
- Warranted: 3 years
