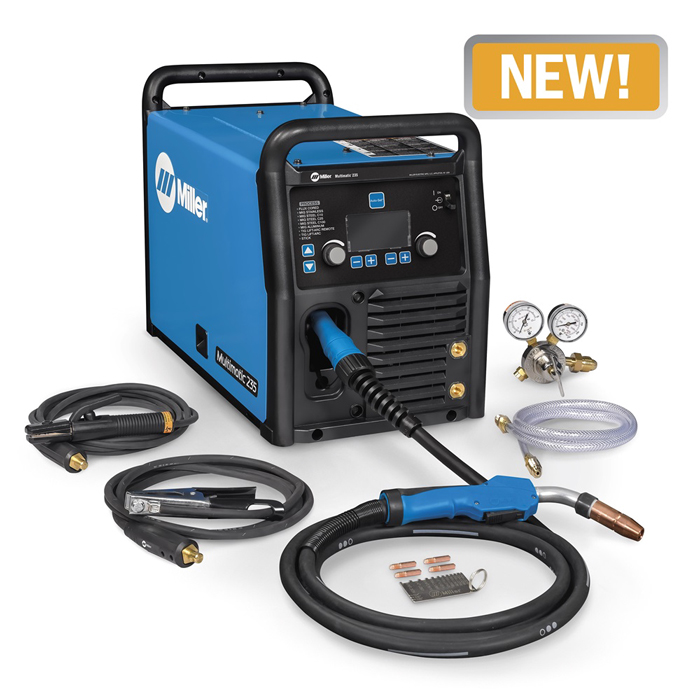

MULTIMATIC® 235 MULTIPROCESS MILLER WELDER
208 V, 220/230/240 V, multiprocess welder. Welds up to 3/8 in. mild steel. Versatility, easy-to-understand interface, portability. Quick and easy setup allows operators to have faster uptime and weld with confidence. Weld MIG, flux cored, stick and DC TIG with confidence.
| Built for professionals in the manufacturing/fabrication, MRO and construction fabrication and education segments, the Multimatic 235 allows welders of all skill levels to be more efficient for all their MIG, flux-cored, stick and DC TIG welding needs. Setup is quick and easy, letting operators have faster uptime and weld with confidence. |
| Technical Specifications | ||
|---|---|---|
| Processes |
MIG (GMAW)
Flux-cored (FCAW) DC stick (SMAW) DC Lift-Arc™ TIG (GTAW) Pulsed TIG (GTAW-P) |
|
| Input Power | 240 V, single-phase | |
| Rated Output | MIG: 170 A at 22.5 V, 60% duty cycle Stick: 150 A at 26 V, 60% duty cycle TIG: 180 A at 17.2 V, 60% duty cycle |
|
| Amperage range | 20–235 A | |
| Wire Feed Speed | 60–600 ipm (1.3–20 m/min.) | |
| Max. Open-circuit Voltage | 54 VDC | |
| Net Weight | 29 Kg | |
| Dimensions (H x W x D) | 489 x 349 x 616 mm | |
Features
VersatilityMultiprocess Capabilities of MIG, Flux Cored, DC Lift Arc TIG and DC Pulsed TIG
|

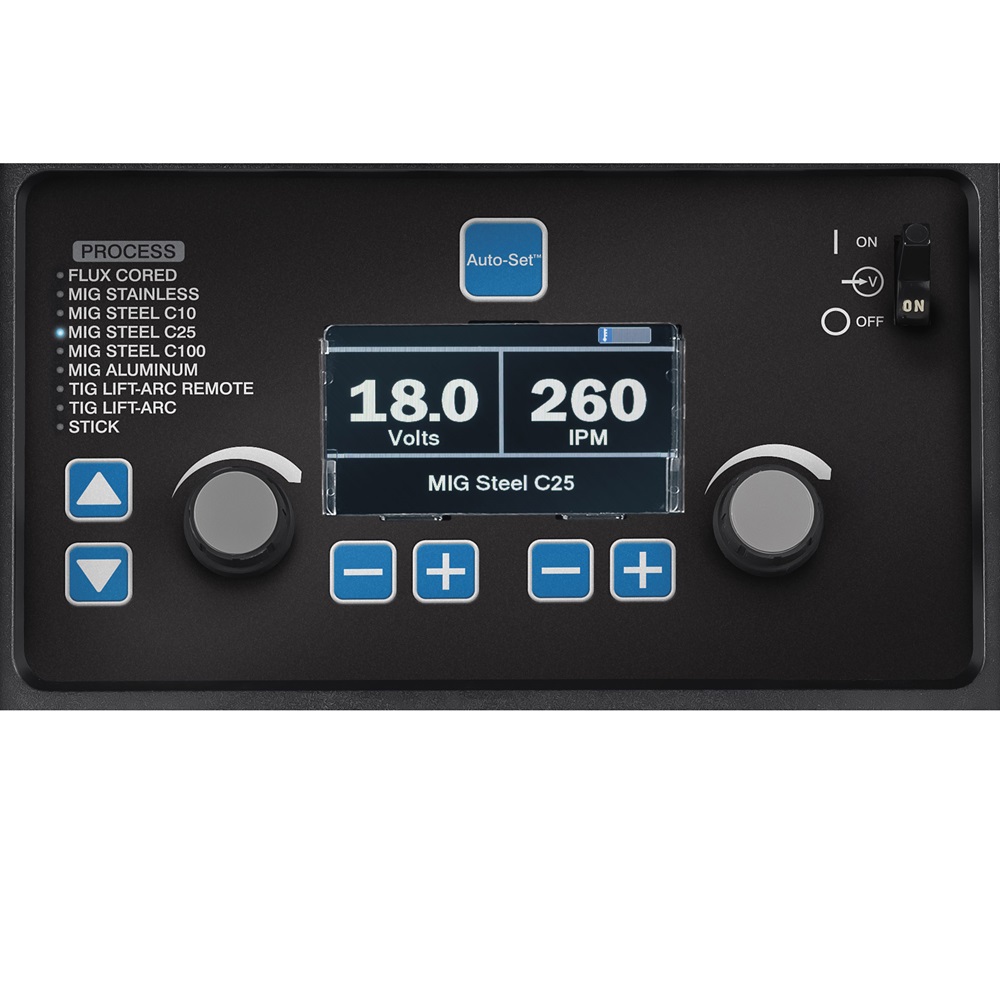

Easy-to-understand interface4.3-inch color LCD display ensures proper machine setup and parameter selection, reducing setup time and increasing weld time
|
Portability - Machine only weighs 63 lbWeight is reduced to make it easier to take the welder to where the work is, plus the added convenience of one machine versus two or more.
|
Optional EZ-Latch™ running gearOperators no longer need to use lift truck to load machine and running gear into the truck. Latches secure machine to running gear. Simply loosen the latch retaining knob and rotate latches to disengage machine from running gear for easy portability
|
Gun-On-Demand™Millers Gun-On-Demand™ allows operators to simply pull the trigger on MIG gun or Spoolgun. Automatically detects and recalls the voltage, wire feed speed of the active gun.
|
Auto-Set™ TechnologyOffers predefined weld settings to increase ease of use and ensure that the job is done right for operators of all skill levels.
|
Generator CompatibleWill be able to operate and provide full output when powered by an engine-driven welder with 10000 Watt (10K) output or higher, such as a Miller Bobcat or Trailblazer. Limited output will occur when used with smaller generators.
|
MDX-250 MIG Gun w/ AccuLock™ MDX consumablesAccuLock liner loads from the front and locks at the front and back to insure proper alignment for flawless wire feed path. New rubber overmold and ball -and-socket handle design improves grip and reduces welder fatigue. New Industrial Bernard AccuLock™ MDX contact tips provide superior MIG arc performance |
Warranty: 3 years
