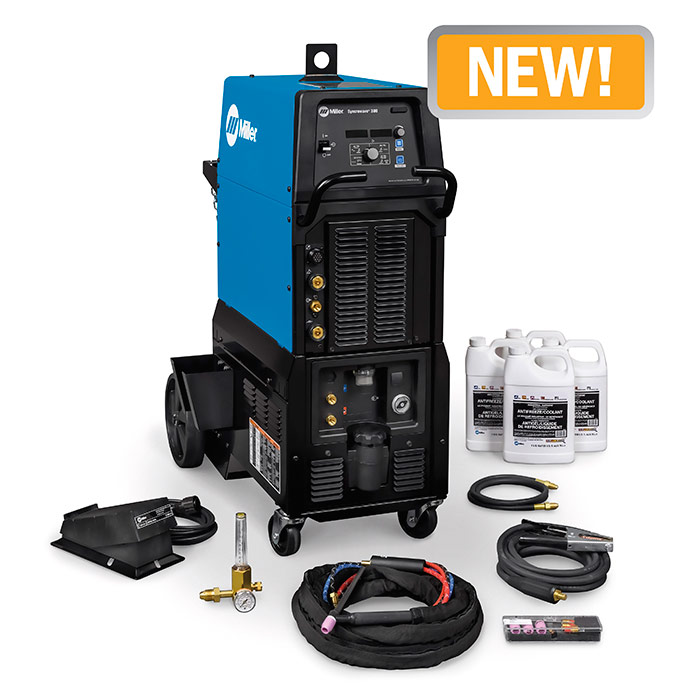

SYNCROWAVE ® 300 TIG WELDING MACHINE
Industrial Applications
– Precision metal fabrication
– Maintenance and repair
– Light and heavy manufacturing
– Shipbuilding
– Tube and pipe
– Automotive
– Vocational
For fabricators who need more TIG welding productivity and lower operating costs, new Miller Syncrowave machines are the energy efficient TIG welding power sources that make it easier for any welder to get more work done.
| Technical Specifications | ||
|---|---|---|
| Processes | TIG (GTAW)
Stick (SMAW) DC Pulsed TIG (GTAW-P) |
|
| Industrial Applications |
|
|
| Rated input voltage / Number of phases | 208/240/480 V / 3-phase or 1-phase | |
| Rated frequenc | 50/60 Hz | |
| Input amperage | TIG: 27/23/11 A (3-phase), 47/41/19 A (1-phase) at 208/240/480 V; Stick: 25/22/11 A (3-phase), 44/37/18 A (1-phase) at 208/240/480 V | |
| Rated input capacity | TIG: 9.7 kVA / 9.2 kW (3-phase), 9.7 kVA / 9.4 kW (1-phase); Stick: 8.9 kVA / 8.6 kW (3-phase), 9.0 kVA / 8.8 kW (1-phase) | |
| Rated output current | TIG: 300 A / 210 A / 175 A; Stick: 230 A / 160 A / 125 A | |
| Rated output voltage |
TIG: 22 V / 18.4 V / 17 V; Stick: 28.4 V / 26.4 V / 25 V
|
|
| Rated duty cycle |
TIG: 30% / 60% / 100%; Stick: 30% / 60% / 100%
|
|
| Rated output no-load voltage | 60 VDC (13 VDC sense voltage for low OCV Stick and Lift-Arc™ TIG) | |
| Output current range | TIG: 5–300 A; Stick: 5–230 A | |
| Dimensions (W × D × H) |
15 × 24.6 × 29.4 in. (381 × 625 × 746 mm)
|
|
| Weight |
45.8 kg
|
|
Warrantied: 3 years
