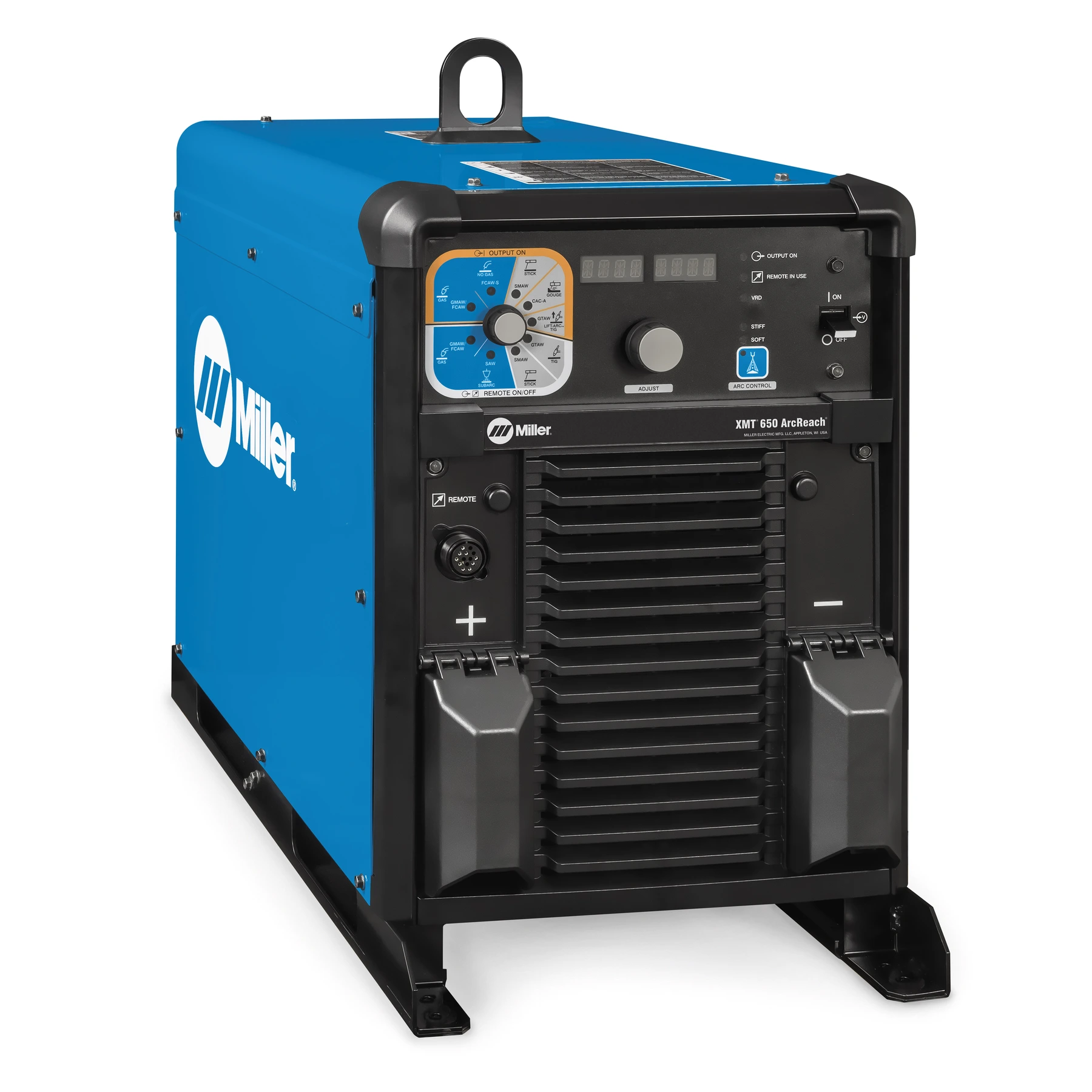

XMT® 650 380/460V WELDING MACHINE

XMT® 650 380/460V WELDING MACHINE - Image 3

XMT® 650 380/460V WELDING MACHINE

SKU: 907823 Category:Multiprocess welder Brand: MILLER

380/400 V, 380/400/440 V, 460 V, 460/480 V, XMT®. LED Process Indicator, 14-pin Receptacle. Developed for harsh environments and outputs that range from power-intensive to precise.

Description
Document

Technical Specifications
Processes	MIG (GMAW) Flux-cored (FCAW) Accu-Pulse® (GMAW-P)* Versa-Pulse™ (GMAW-P) High-deposition MIG (GMAW) RMD® (Regulated Metal Disposition)* With Intellx™ Pro and Intellx™ Elite feeders. With Intellx™ Elite feeders.
Heavy Industrial	Manufacturing General manufacturing General fabrication Structural steel fabrication Transportation Sheet metal fabrication Light-gauge tube and sheet
Input Power	208/230/460 V or 575 V, 3-phase, 60 Hz 230 V, 1-phase, 60 Hz
Rated Output	350 A at 60% duty cycle
Wire Diameter	Single-wire:16.25 x 12.38 x 27.88 in. (413 x 314 x 708 mm) Dual-wire: 14 x 18 x 34.5 in. (356 x 457 x 876 mm)
Wire Feed Speed	50–780 ipm (1.3–19.8 m/min.)
Net Weight	34.9 Kg
Dimensions (HxWxD)	356 x 457 x 876 mm

Features

Auto Remote Sense™

Enables unit to automatically use remote control if connected to remote control receptacle.

Easy to Use

The XMT 650 ArcReach with Polarity Reversing power source is streamlined and simplified to reduce setup time and potential weld defects. Process changeover eliminates the need for swapping cables. The robust design withstands harsh environments common in the field.

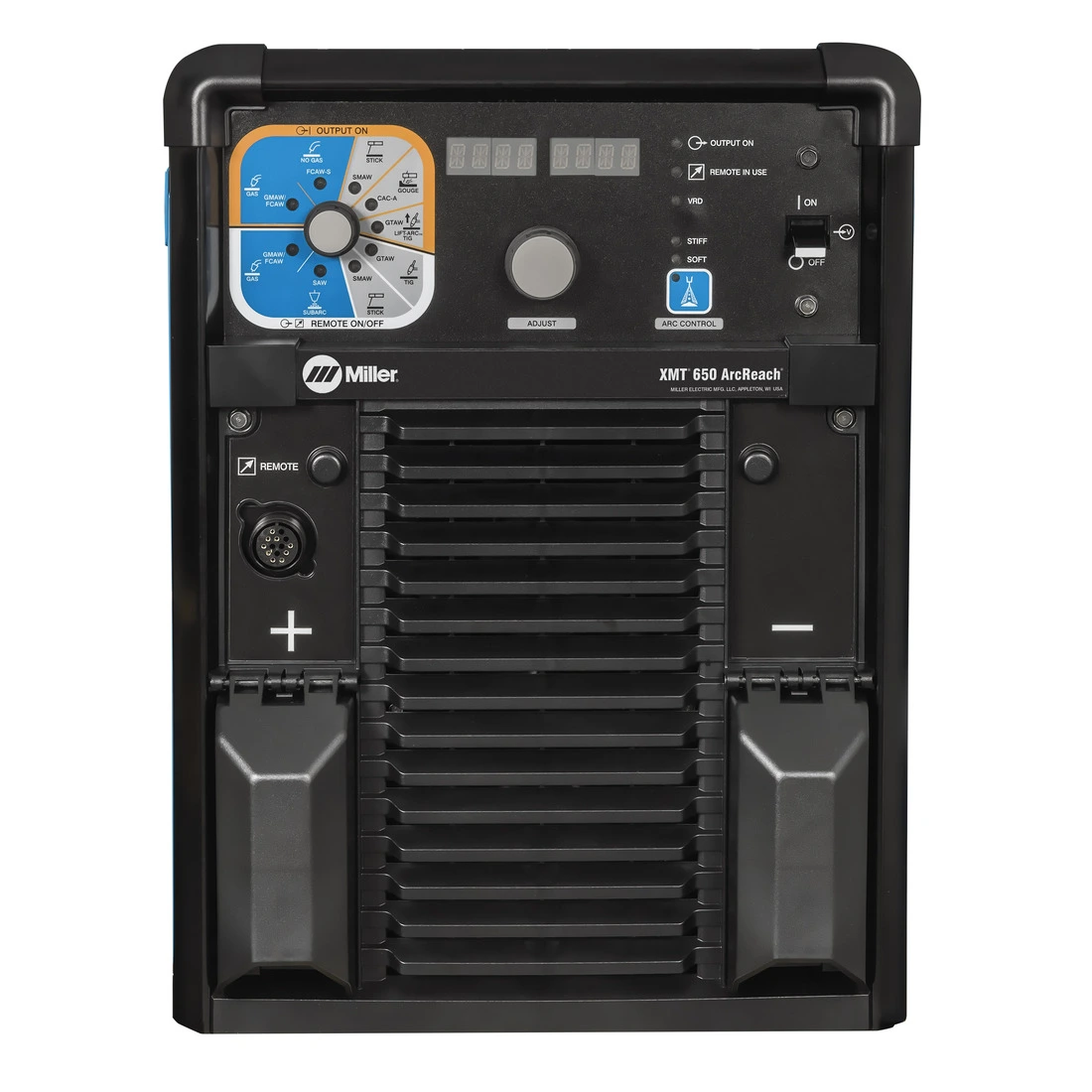

LED Process Indicator

Front panel process selections are illuminated with an LED that identifies the active process. This enables the selected weld process to be seen at a distance from the power source.

Gouging Mode

Optimized stick position for better gouging performance.

Two Wire Modes

GMAW / FCAW for simplified setup and optimized arc performance, Solid and flux-cored wires with gas -Flux-cored (self-shielded).

14-pin Receptacle

Provides a quick, direct connection to Miller® wire feeders. Capable of remote voltage control.

ArcReach® Technology

ArcReach capabilities increase jobsite productivity and efficiency by eliminating the time spent tracing weld cables hundreds of feet back to the power source because weld operators can make voltage adjustments at the ArcReach wire feeder or remote.
