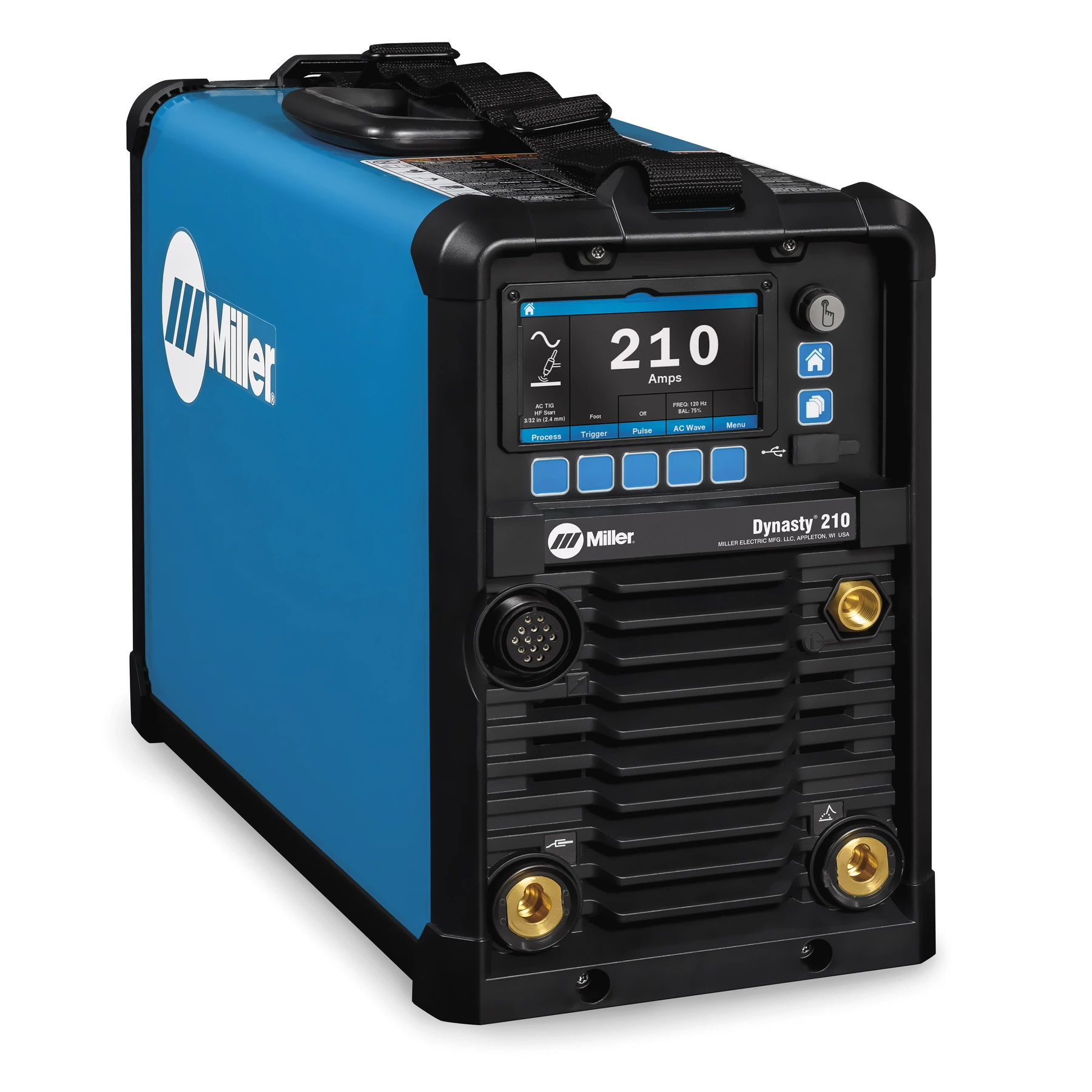

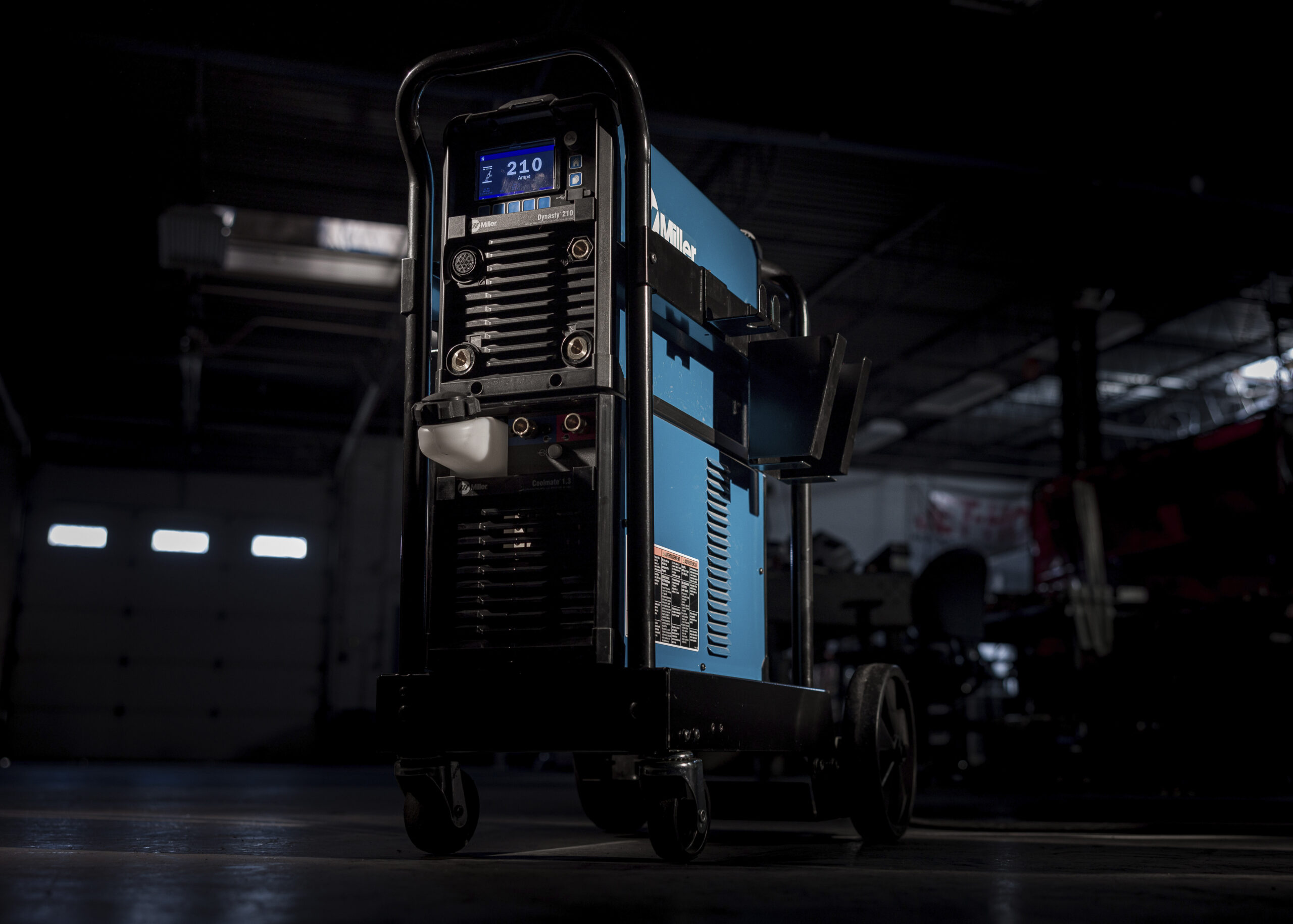

DYNASTY 210 MILLER WELDING MACHINE

SKU: 907816 Category:TIG welder Brand: MILLER

About The Dynasty® 210

Dynasty® 210 Series welds up to 1/4 in. thick steel and aluminum. Features Intuitive Interface LCD Display, Locks and Limits, and Program Memory for precise, flexible welding control.

What's Included +

Description
Document

Technical Specifications
Processes	AC/DC TIG (GTAW) Pulsed TIG (GTAW-P) Stick (SMAW)
Light Industrial Applications	Aerospace Heavy fabrication Precision fabrication Aluminum ship repair Pipe and tube fabrication Anodized aluminum fabrication
Rated input voltage / Number of phases	120-480 V / 1-phase or 3-phase
Rated frequency	50/60 Hz
Input amperage:	TIG: 16 A (208 V) / 14 A (240 V) / 8 A (400 V) / 7 A (480 V) - 3-phase; 28 A / 23 A / 14 A / 12 A - 1-phase; 26 A (120 V) - 1-phase
Rated input capacity	TIG: 5.7 kVA (3-phase) / 5.8 kVA (1-phase) / 2.8 kVA (120 V, 1-phase)
Rated output current	210 A
Rated output voltage	18.4 V
Rated duty cycle	60%
Rated output no-load voltage	80 VDC
Output current range	TIG: 2–210 A (AC), 1–210 A (DC) / Stick: 5–210 A
Enclosure protection class:	IP23
Dimensions (W × D × H)	216 × 555 × 352 mm
Weight	21.3 kg

Features

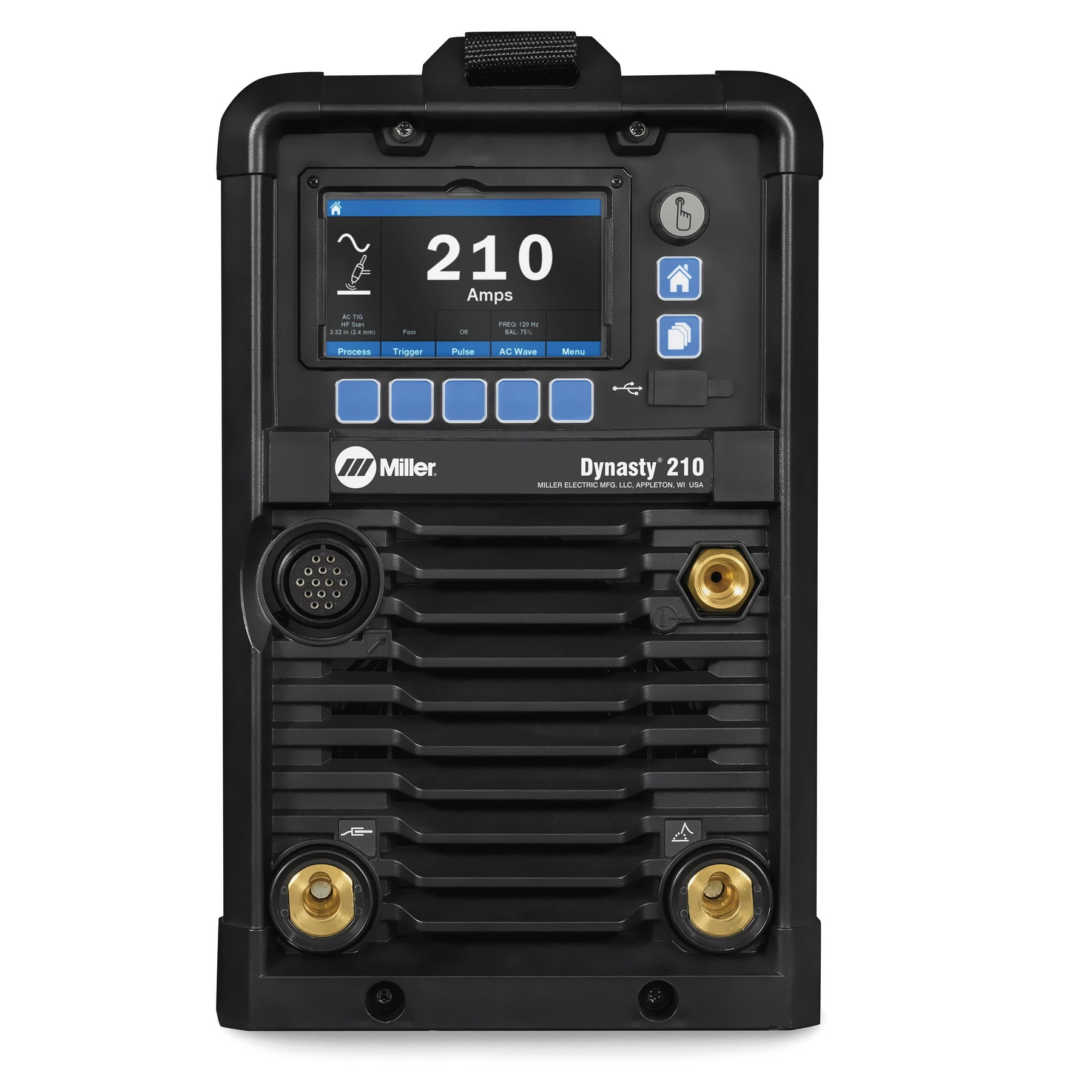

Intuitive Interface LCD Display Ensure proper machine setup and parameter selection with informative on-screen explanations and dynamic images.	Locks and Limits Provides graphic feedback as parameters are adjusted. Users will be able to see how setting changes affect penetration and bead profile.	Program Memory Allows easy naming, saving and recalling up to 99 custom weld programs.	Pro-Set™ Feature This feature eliminates the guesswork when setting weld parameters. Use Pro-Set when you want the speed, convenience and confidence of pre-set controls. Simply select the feature and adjust until Pro-Set appears on the display. The Pro-Set feature is available for Balance, Frequency, Pulse and DIG parameters.
QuietPulse™ QuietPulse is activated by changing the waveshape for DC pulse welding, creating a slower, more fluid transition between the background and peak amperage to create the least possible audible noise.	USB Port Provides the ability to easily update software, back-up settings and transfer saved weld programs from one unit to the next.	Stick Features Tailored arc control (DIG) allows the arc characteristics to be changed for specific applications and electrodes. Smooth running 7018 or stiffer, more penetrating 6010. Hot Start™ adaptive control provides positive arc starts without sticking.	AC Frequency Control Control the width of the arc cone and can improve directional control of the arc with adjustments between 50-150 Hertz.
Auto-Line™ Technology Allows hookup to either single-phase or three-phase primary input voltage, 208-600 volts dependent on the machine, with no manual linking, providing convenience in any job setting. An ideal solution for dirty or unreliable input power.
