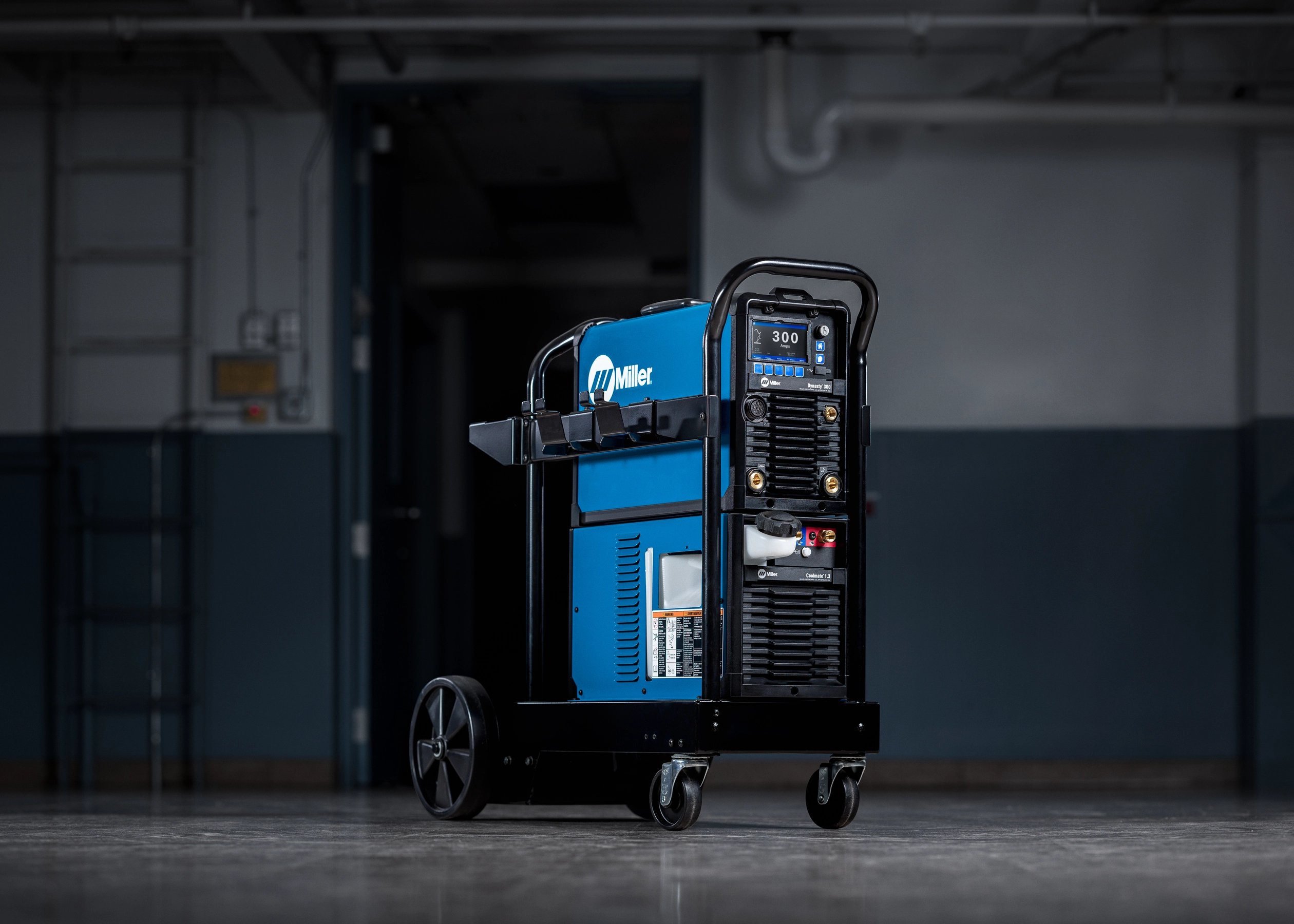

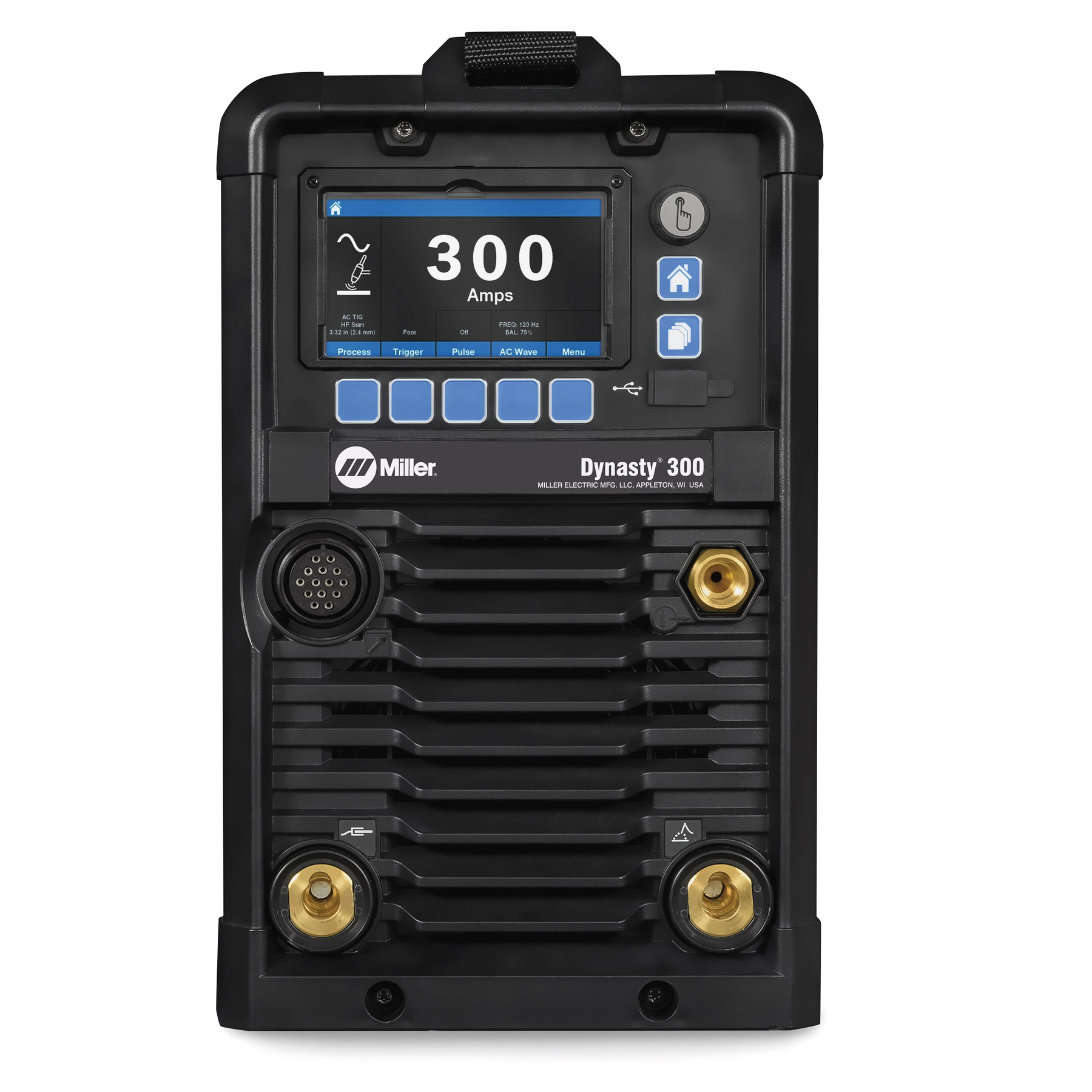

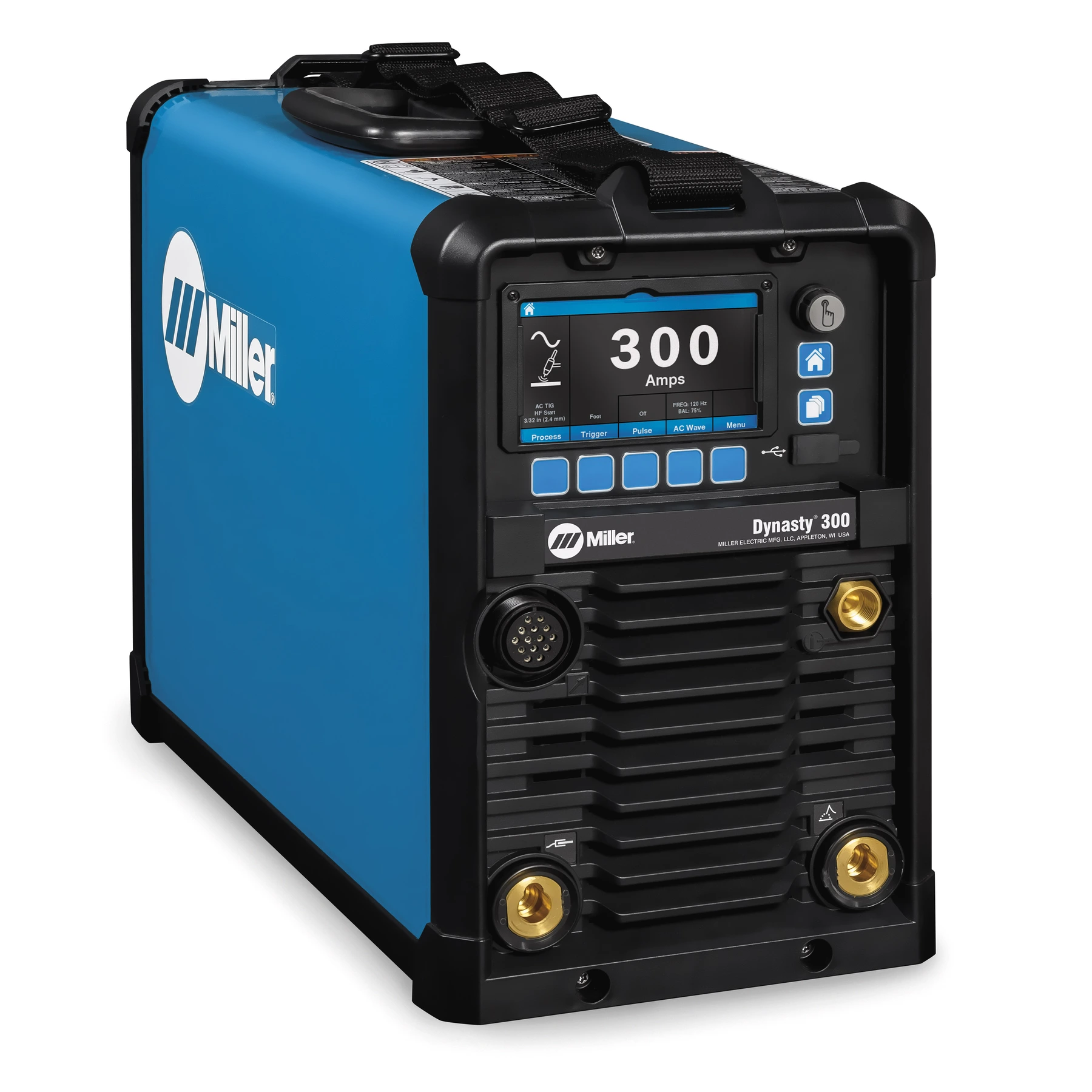

DYNASTY 300 CPS MILLER WELDING MACHINE
DYNASTY 300 CPS MILLER WELDING MACHINE - Image 2
DYNASTY 300 CPS MILLER WELDING MACHINE - Image 3
DYNASTY 300 CPS MILLER WELDING MACHINE - Image 4
PLAY VIDEO

DYNASTY 300 CPS MILLER WELDING MACHINE

SKU: 907818 Category: Brand:

The Dynasty 300 Series is a powerful combination of capability and portability. It can weld up to 3/8″ thick material. The AC/DC TIG/Stick power sources feature an energy-efficient inverter design and Auto-Line™ technology.

What's Included +



Technical Specifications
Processes MIG (GMAW)

Flux-cored (FCAW)

Accu-Pulse® (GMAW-P)*

Versa-Pulse™ (GMAW-P)**

High-deposition MIG (GMAW)**

RMD® (Regulated Metal Disposition)***

With Intellx™ Pro and Intellx™ Elite feeders.

**With Intellx™ Elite feeders.
Heavy Industrial
  • Manufacturing
  • General manufacturing
  • General fabrication
  • Structural steel fabrication
  • Transportation
  • Sheet metal fabrication
  • Light-gauge tube and sheet
Input Power 208/230/460 V or 575 V, 3-phase, 60 Hz
230 V, 1-phase, 60 Hz
Rated Output 350 A at 60% duty cycle
Wire Diameter Single-wire:16.25 x 12.38 x 27.88 in. (413 x 314 x 708 mm)

Dual-wire: 14 x 18 x 34.5 in. (356 x 457 x 876 mm)
Wire Feed Speed 50–780 ipm (1.3–19.8 m/min.)
Net Weight 34.9 Kg
Dimensions (HxWxD) 356 x 457 x 876 mm



Features

Intuitive Interface LCD Display
Ensure proper machine setup and parameter selection with informative on-screen explanations and dynamic images.
Locks and Limits
Provides control of the weld parameter ranges minimizing deviations from the welding procedure specifications (WPS).
Program Memory
Allows easy naming, saving and recalling up to 99 custom weld programs.
Pro-Set™ Feature
This feature eliminates the guesswork when setting weld parameters. Use Pro-Set when you want the speed, convenience and confidence of pre-set controls. Simply select the feature and adjust until Pro-Set appears on the display. The Pro-Set feature is available for Balance, Frequency, Pulse and DIG parameters.
QuietPulse™
QuietPulse is activated by changing the waveshape for DC pulse welding, creating a slower, more fluid transition between the background and peak amperage to create the least possible audible noise.
USB Port
Provides the ability to easily update software, back-up settings and transfer saved weld programs from one unit to the next.
Auto-Line™ Technology
Allows hookup to either single-phase or three-phase primary input voltage, 208-600 volts dependent on the machine, with no manual linking, providing convenience in any job setting. An ideal solution for dirty or unreliable input power.
Stick Features
Tailored arc control (DIG) allows the arc characteristics to be changed for specific applications and electrodes. Smooth running 7018 or stiffer, more penetrating 6010. Hot Start™ adaptive control provides positive arc starts without sticking.
AC Frequency Control

Control the width of the arc cone and can improve directional control of the arc with adjustments between 50-150 Hertz.

 Tiêu đề tính năng 2Mô tả chi tiết... Tiêu đề tính năng 3Mô tả chi tiết... Tiêu đề tính năng 4Mô tả chi tiết...





  • Warranted: three years
