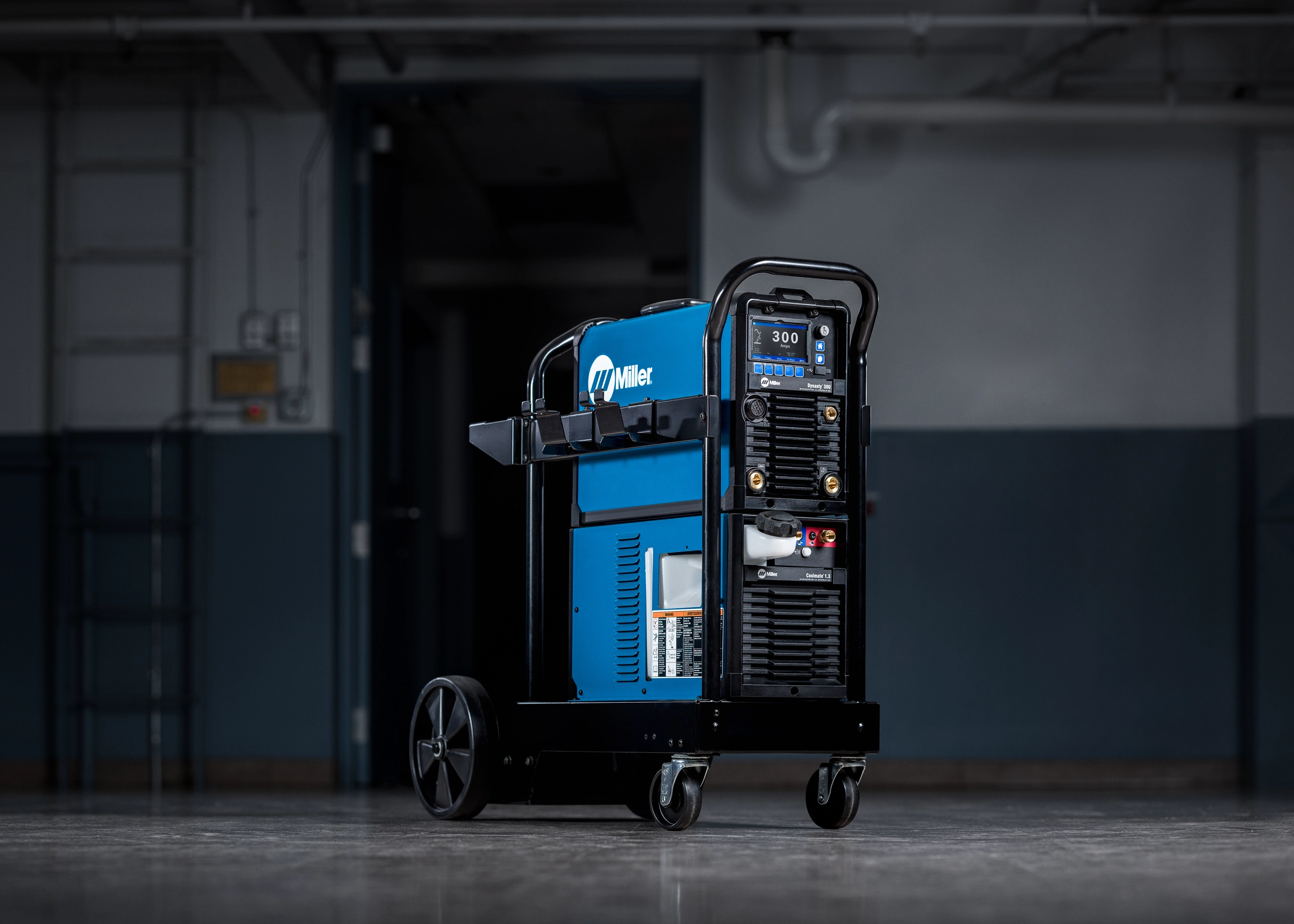

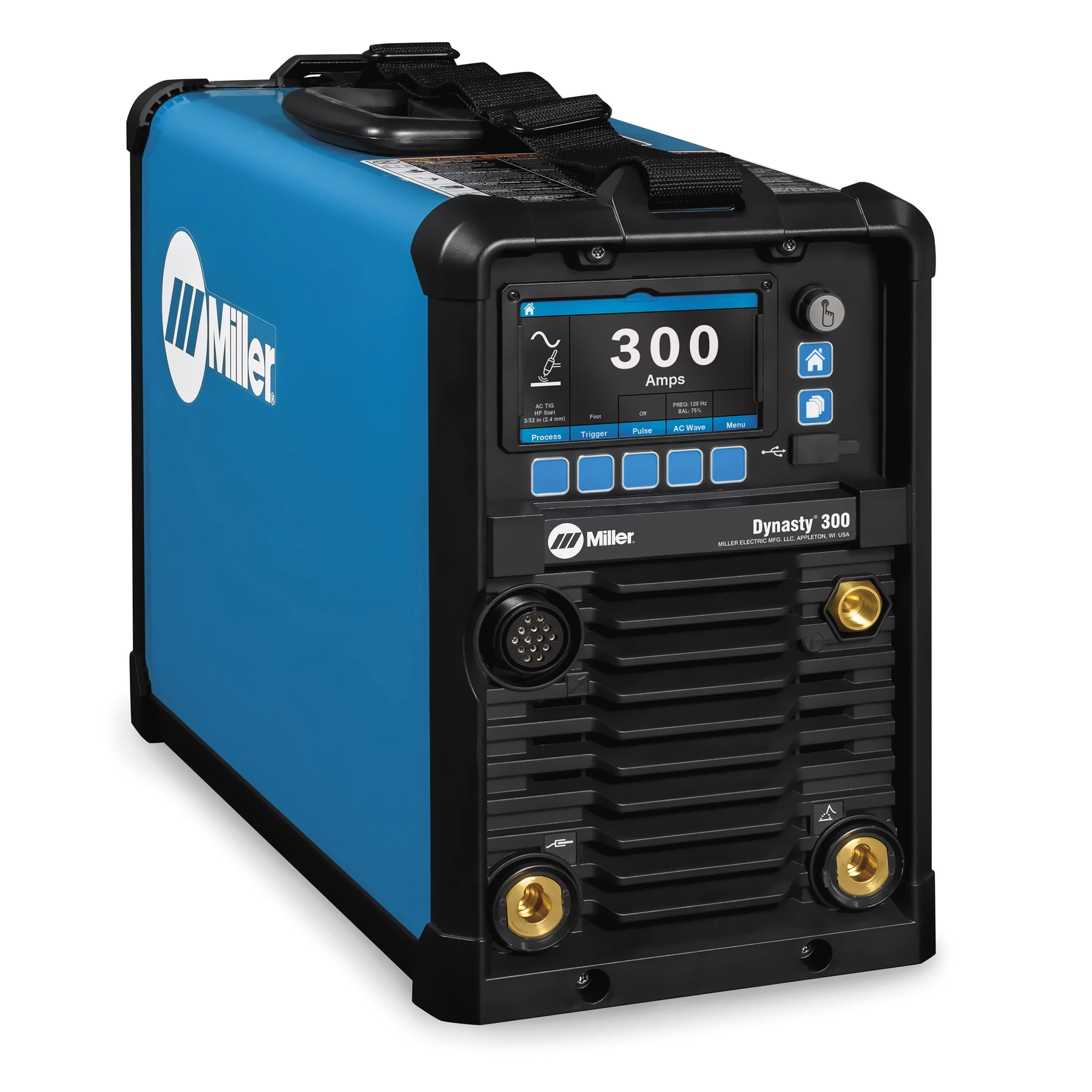

DYNASTY 300 MULTIPROCESS WELDING MACHINE
The Dynasty 300 Series has now expanded beyond the industry leading TIG and Stick performance by the additional CV output which allows for MIG capability – making this multiprocess line the perfect solution for ship building, construction, mechanical contractors, educational and more.
| Technical Specifications | ||
|---|---|---|
| Processes | AC/DC TIG (GTAW)
Pulsed TIG (GTAW-P) Stick (SMAW) Air carbon arc (CAC-A) MIG (GMAW)* Flux-cored (FCAW) |
|
| Industrial Applications |
|
|
| Rated input voltage / Number of phases | 208–600 V
1-phase or 3-phase |
|
| Rated frequency | 50/60 Hz | |
| Input amperage |
TIG: 19 / 17 / 10 / 8 / 7 A (208 / 230 / 400 / 460 / 600 V, 3-phase); 33 / 30 / 17 / 15 / 11 A (1-phase) / Stick: 14 / 12 / 9 A (400 / 460 / 600 V, 3-phase); 35 / 32 A (208 / 230 V, 1-phase) MIG/Flux-cored: 12 / 11 / 9 A (400 / 460 / 600 V, 3-phase); 31 / 28 A (208 / 230 V, 1-phase)
|
|
| Rated input capacity |
TIG: 7.5 kVA (3-phase) / 6.7 kVA (1-phase); Stick: 9.8 kVA (3-phase) / 9.3 kVA (1-phase); MIG/Flux-cored: 8.9 kVA (3-phase) / 6.2 kVA (1-phase)
|
|
| Rated output current |
TIG: 250 A / Stick: 250 A (3-phase), 200 A (1-phase) / MIG/Flux-cored: 250 A (3-phase), 200 A (1-phase)
|
|
| Rated output voltage | TIG: 20 V / Stick: 30 V (3-phase), 27.2 V (1-phase) / MIG/Flux-cored: 26.5 V (3-phase), 24 V (1-phase) | |
| Rated duty cycle | 60% | |
| Rated output no-load voltage | 60 VDC | |
| Output current range | TIG: 2–300 A (AC), 1–300 A (DC) / Stick: 5–300 A / MIG/Flux-cored: 5–300 A | |
| Output voltage range | 14–28 V (DC) | |
| Enclosure protection class | IP23 | |
| Dimensions (W × D × H) | 216 × 555 × 352 mm | |
| Weight |
25 kg | |
Features

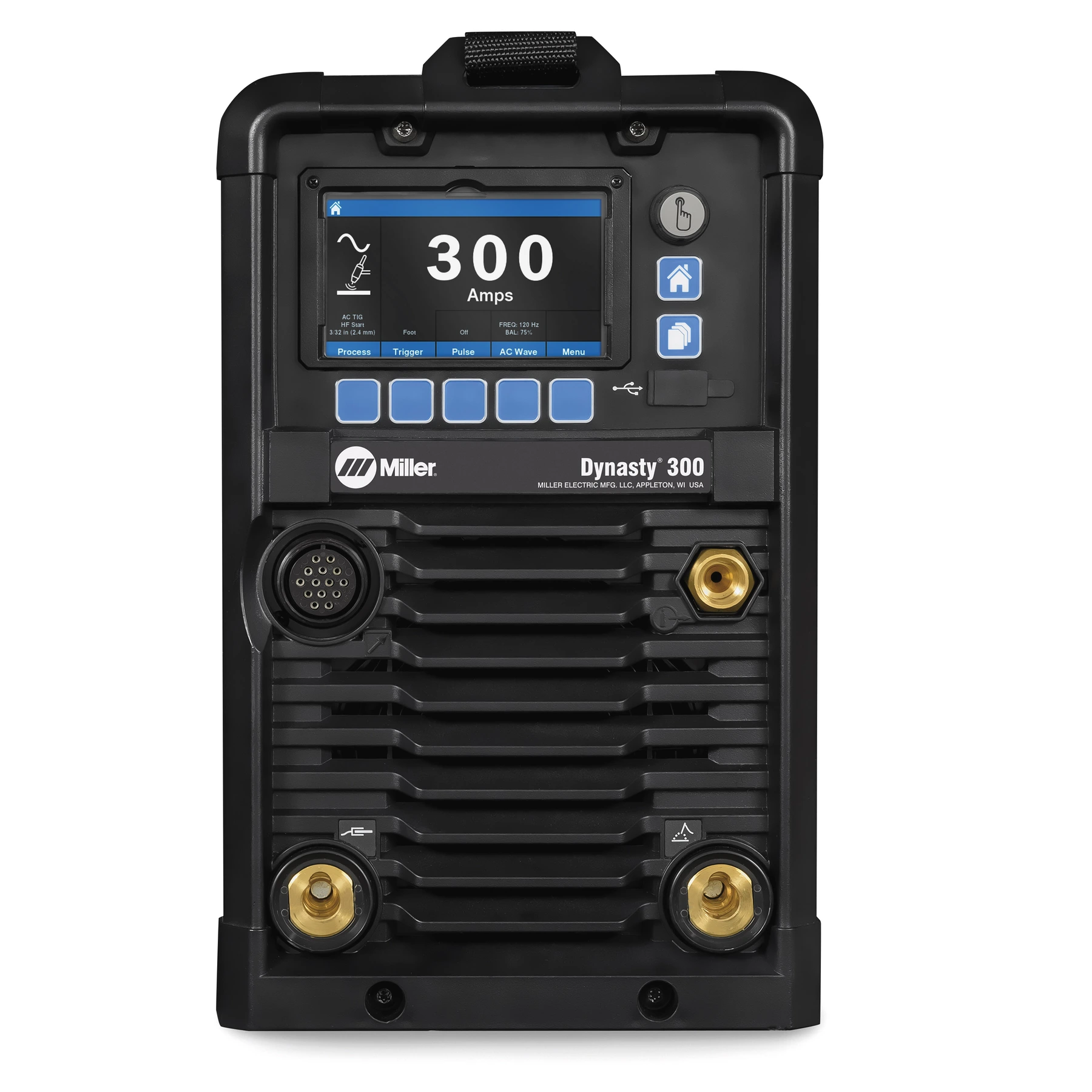

Intuitive Interface LCD DisplayEnsure proper machine setup and parameter selection with informative on-screen explanations and dynamic images.
|
Locks and LimitsProvides control of the weld parameter ranges minimizing deviations from the welding procedure specifications (WPS).
|
Program MemoryAllows easy naming, saving and recalling up to 99 custom weld programs.
|
Pro-Set™ FeatureThis feature eliminates the guesswork when setting weld parameters. Use Pro-Set when you want the speed, convenience and confidence of pre-set controls. Simply select the feature and adjust until Pro-Set appears on the display. The Pro-Set feature is available for Balance, Frequency, Pulse and DIG parameters.
|
QuietPulse™QuietPulse is activated by changing the waveshape for DC pulse welding, creating a slower, more fluid transition between the background and peak amperage to create the least possible audible noise.
|
USB PortProvides the ability to easily update software, back-up settings and transfer saved weld programs from one unit to the next.
|
Auto-Line™ TechnologyAllows hookup to either single-phase or three-phase primary input voltage, 208-600 volts dependent on the machine, with no manual linking, providing convenience in any job setting. An ideal solution for dirty or unreliable input power.
|
Stick FeaturesTailored arc control (DIG) allows the arc characteristics to be changed for specific applications and electrodes. Smooth running 7018 or stiffer, more penetrating 6010. Hot Start™ adaptive control provides positive arc starts without sticking.
|
MIGCV output of the power source gives this unit MIG process capabilities when paired with an ArcReach® 8 or 12 (or other voltage-sensing feeder).
|
Blue Lightning™High-frequency (HF) arc starter for non-contact arc initiation. Provides more consistent arc starts and greater reliability compared to traditional HF arc starters.
|
Cooler-On-Demand™Feature operates the auxiliary cooling system only when needed, reducing noise, energy use, and airborne contaminants pulled through the cooler.
|
Fan-On-Demand™Power source cooling system operates only when needed, reducing noise, energy use, and the amount of contaminants pulled through machine.
|
AC Frequency ControlControl the width of the arc cone and can improve directional control of the arc with adjustments between 50-150 Hertz. |
Tiêu đề tính năng 2
Mô tả chi tiết... |
Tiêu đề tính năng 3
Mô tả chi tiết... |
Tiêu đề tính năng 4
Mô tả chi tiết... |
- Warranted: three years
