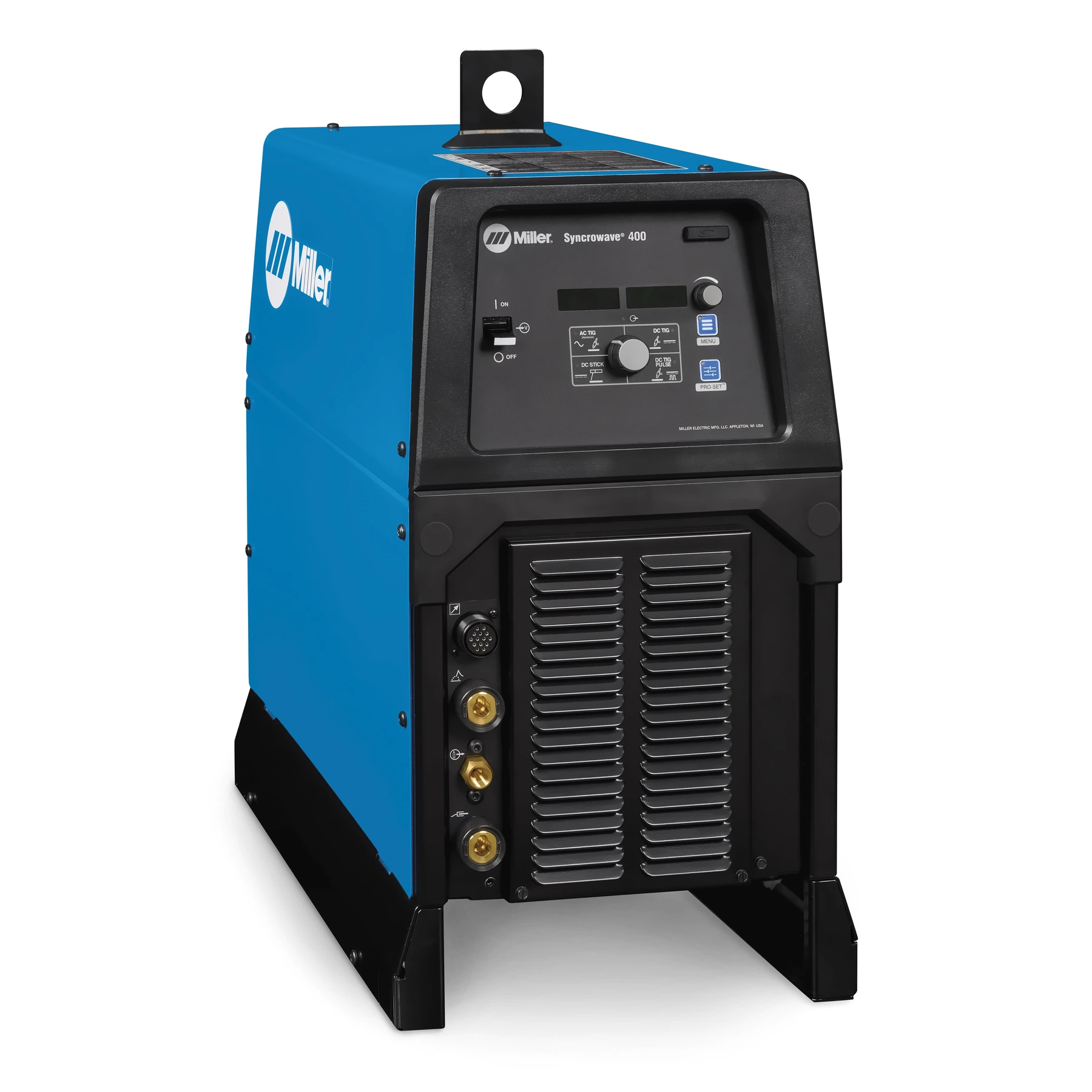

SYNCROWAVE 400 600V WELDING MACHINE

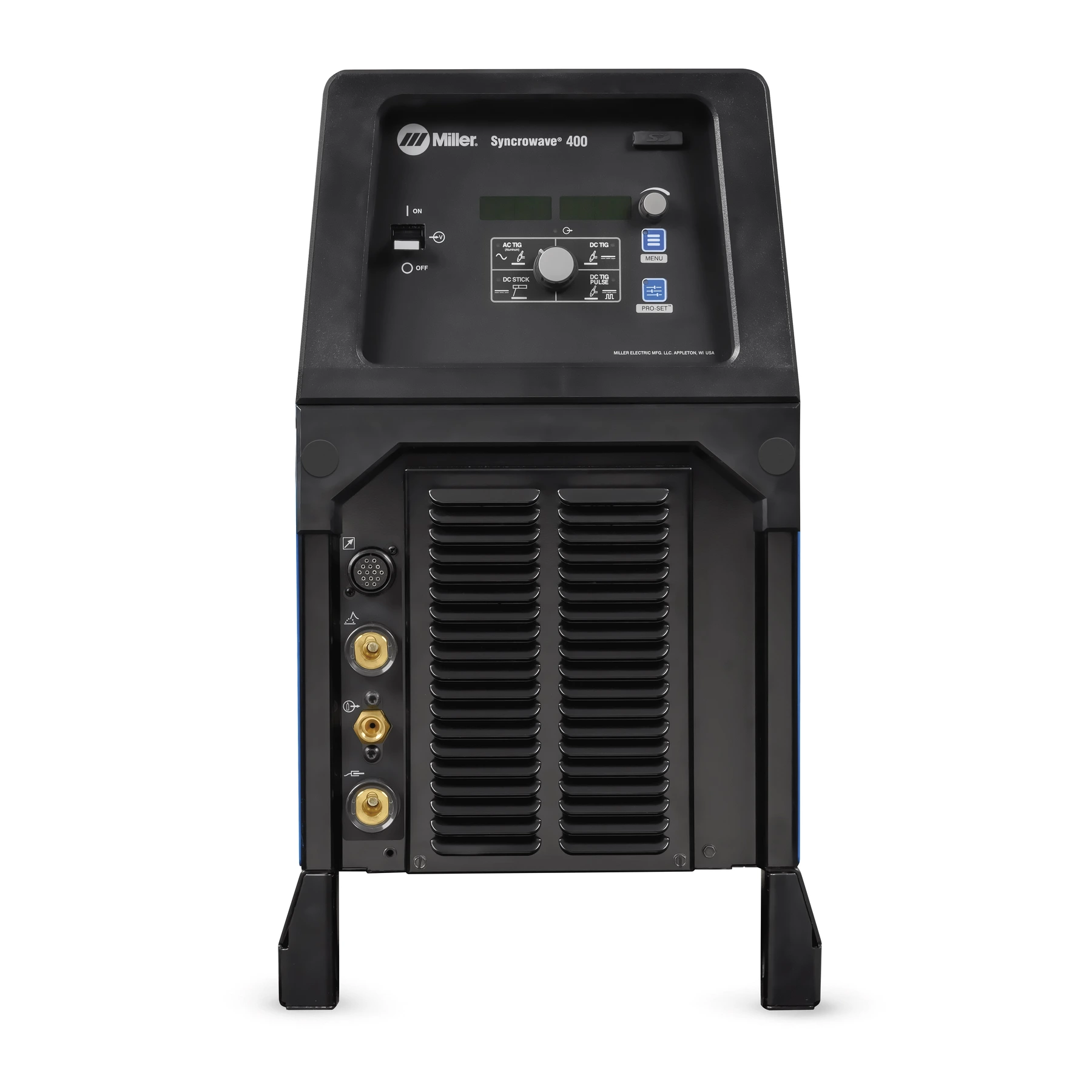

SYNCROWAVE 400 600V WELDING MACHINE - Image 2
SYNCROWAVE 400 600V WELDING MACHINE - Image 3
PLAY VIDEO

SYNCROWAVE 400 600V WELDING MACHINE

SKU: 907884 Category: Brand:
The Syncrowave® 400, 600 V is made for fabricators who need more TIG welding productivity and lower operating costs, new Miller Syncrowave machines are the energy efficient TIG welding power sources that make it easier for any welder to get more work done. CANADA ONLY with 600 V.



Technical Specifications
Processes MIG (GMAW)

Flux-cored (FCAW)

Accu-Pulse® (GMAW-P)*

Versa-Pulse™ (GMAW-P)**

High-deposition MIG (GMAW)**

RMD® (Regulated Metal Disposition)***

With Intellx™ Pro and Intellx™ Elite feeders.

**With Intellx™ Elite feeders.
Heavy Industrial
  • Manufacturing
  • General manufacturing
  • General fabrication
  • Structural steel fabrication
  • Transportation
  • Sheet metal fabrication
  • Light-gauge tube and sheet
Input Power 208/230/460 V or 575 V, 3-phase, 60 Hz
230 V, 1-phase, 60 Hz
Rated Output 350 A at 60% duty cycle
Wire Diameter Single-wire:16.25 x 12.38 x 27.88 in. (413 x 314 x 708 mm)

Dual-wire: 14 x 18 x 34.5 in. (356 x 457 x 876 mm)
Wire Feed Speed 50–780 ipm (1.3–19.8 m/min.)
Net Weight 34.9 Kg
Dimensions (HxWxD) 356 x 457 x 876 mm



Features

Easy to use
Intuitive user interface is simple to understand making it easy to adjust parameters. This means less time training new employees so more work gets done.
Pro-Set™ Feature
This feature eliminates the guesswork when setting weld parameters. Use Pro-Set when you want the speed, convenience and confidence of pre-set controls. Simply select the feature and adjust until Pro-Set appears on the display. The Pro-Set feature is available for Balance, Frequency, Pulse and DIG parameters.
 600V Input Power
Canada only model to support industrial environments with 600V input power.
 AC Frequency Control
Control the width of the arc cone and can improve directional control of the arc with adjustments between 50-150 Hertz.
Smaller Footprint
Smaller, lighter machines are easier to move around and improve workplace conditions.
Simple to install
Accepts either single- or three-phase input power.
Better Arc Performance
Deliver more stable arcs and better arc-starting characteristics, making it easy for any welder to get more work done and do better work.
 Energy efficient
Save up to 28 percent on energy costs versus outdated welding equipment.









  • Warranted: three years
