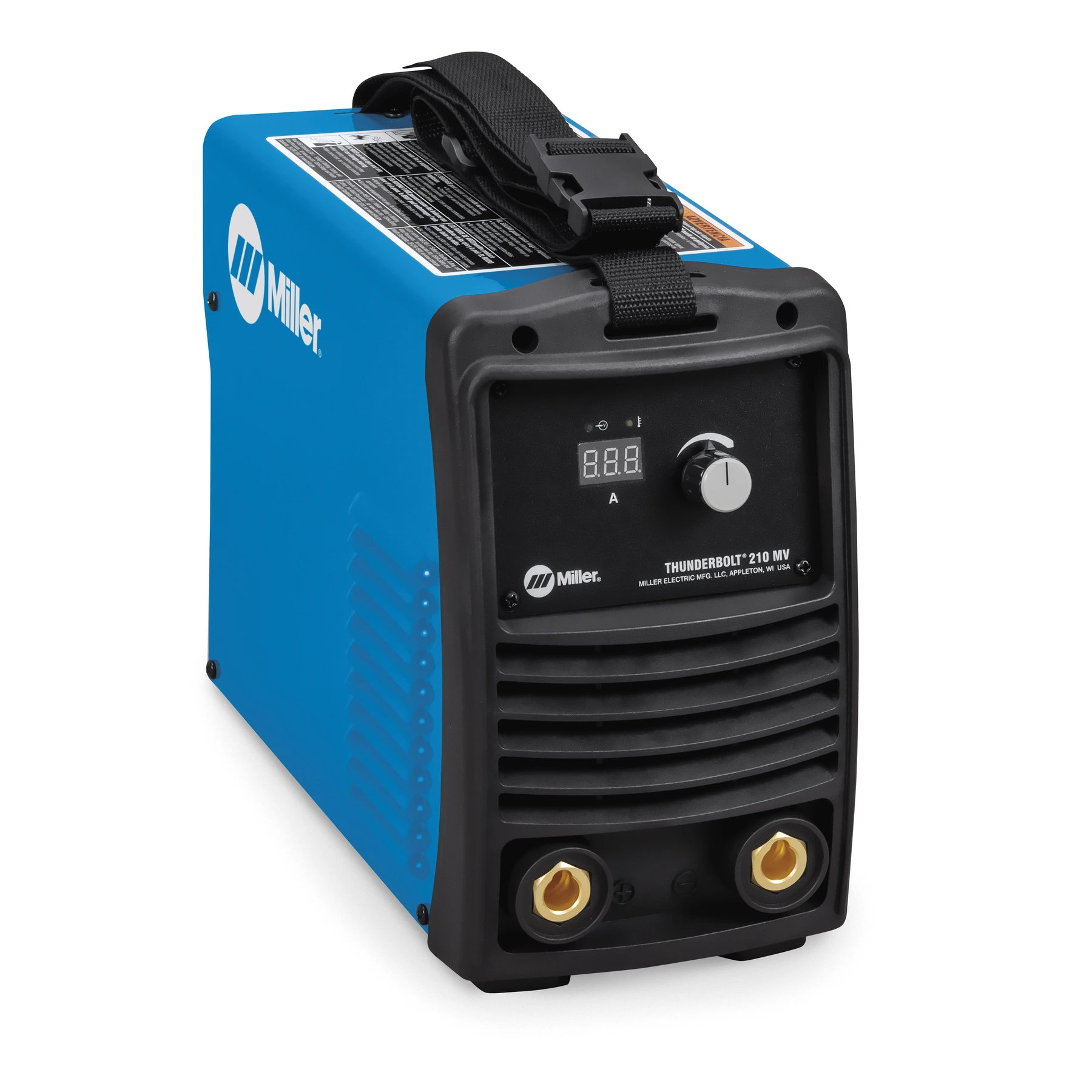

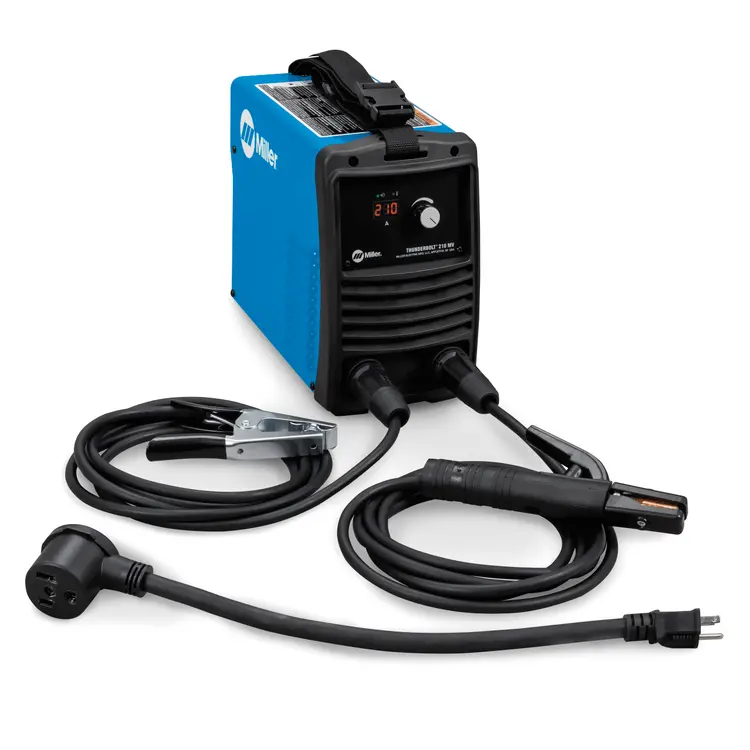

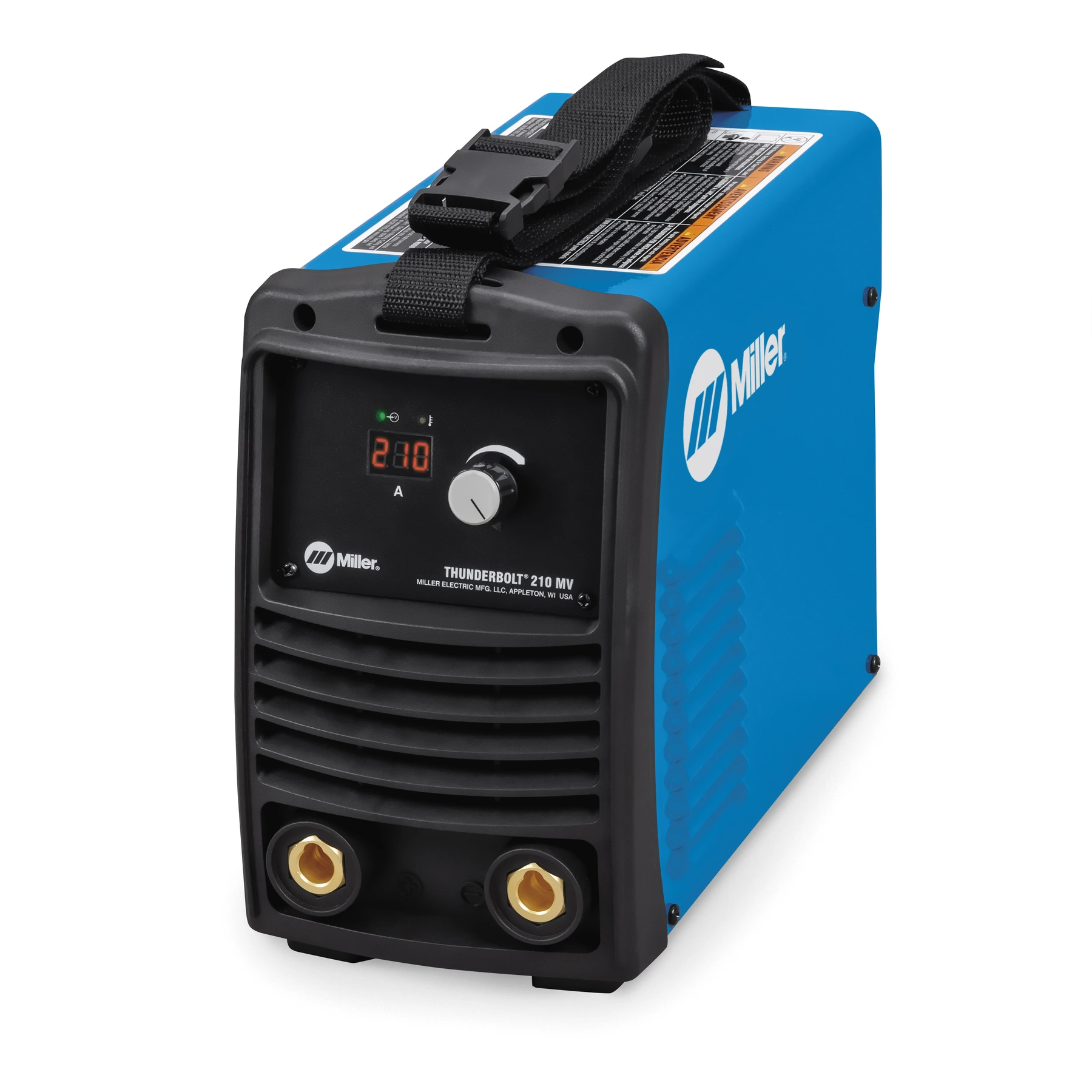

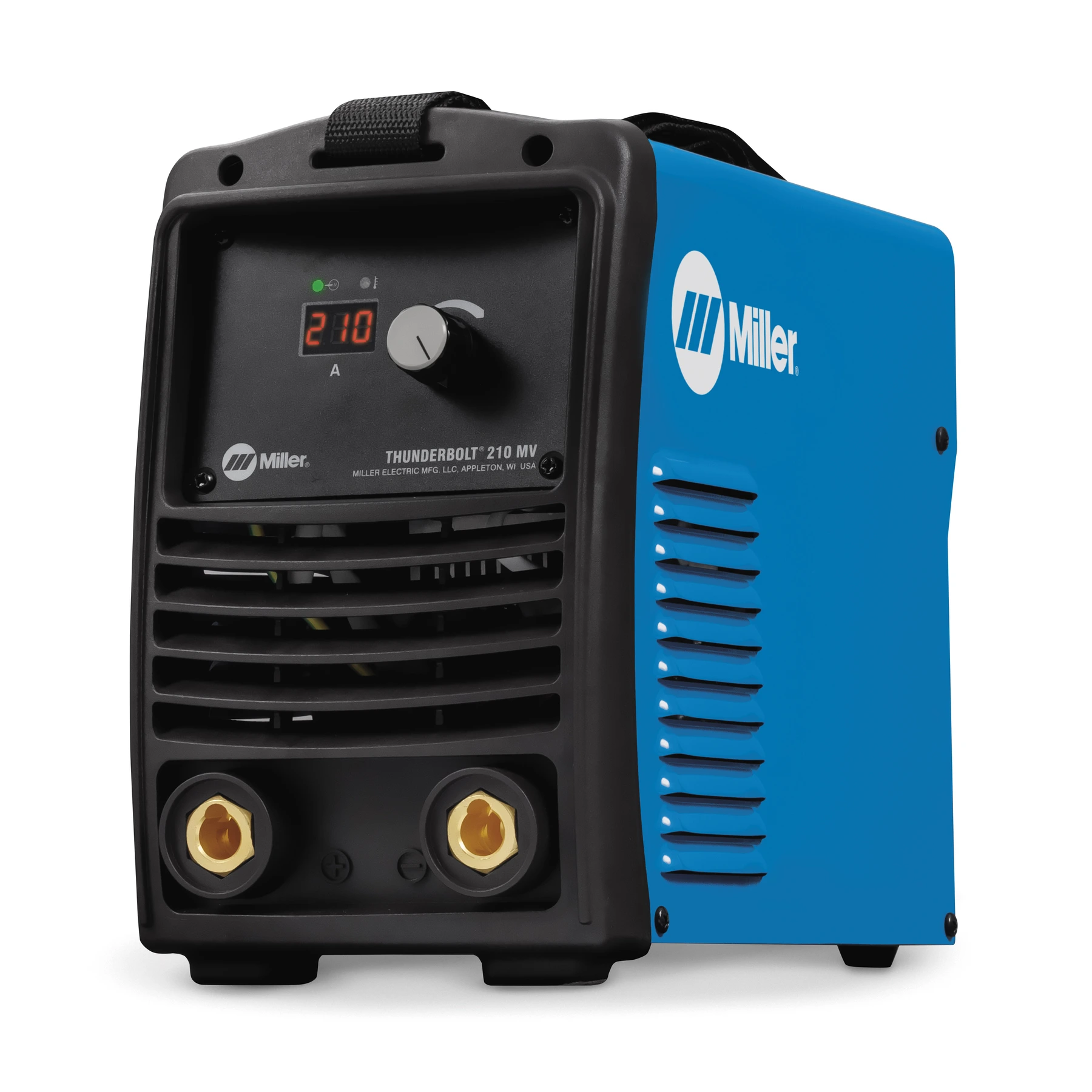

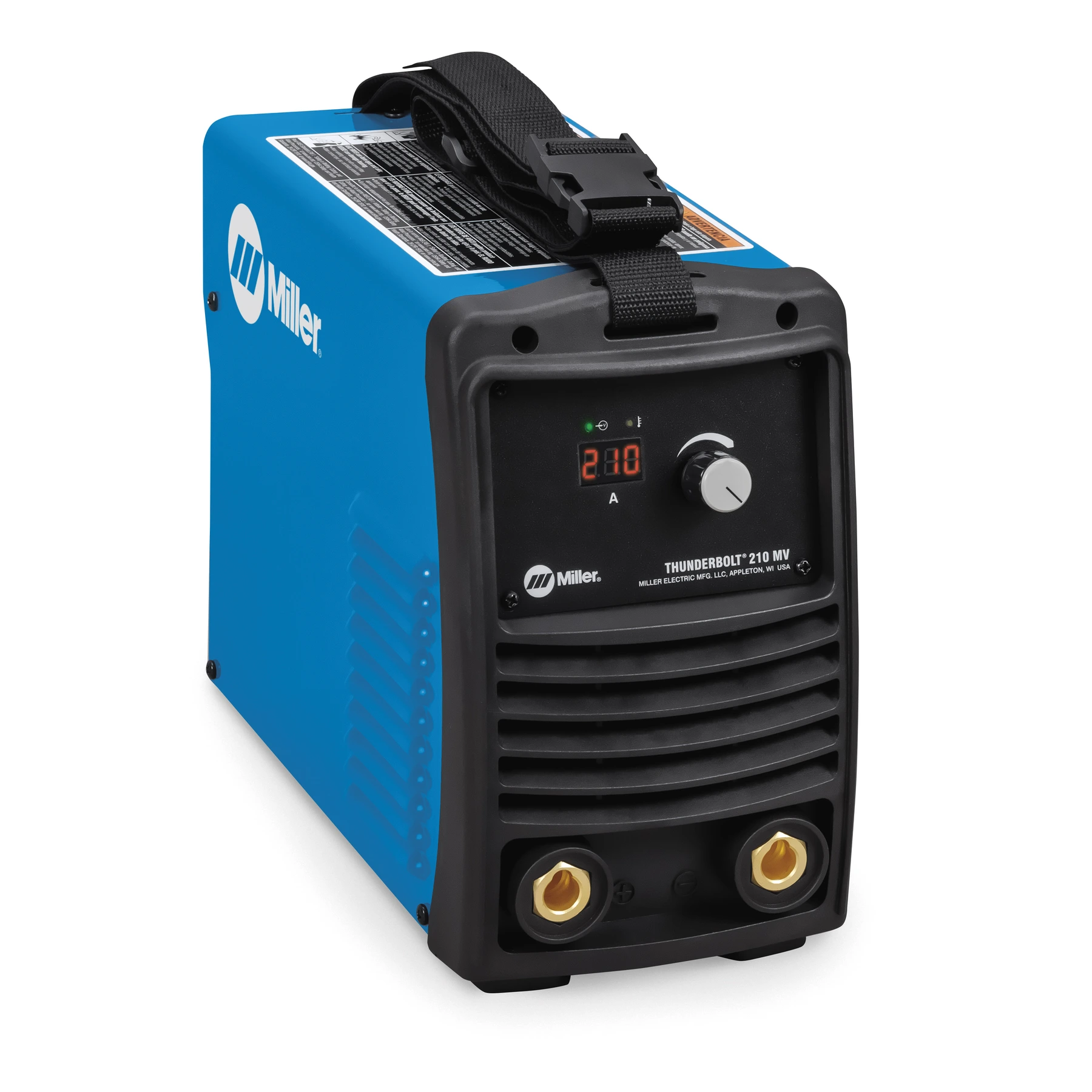

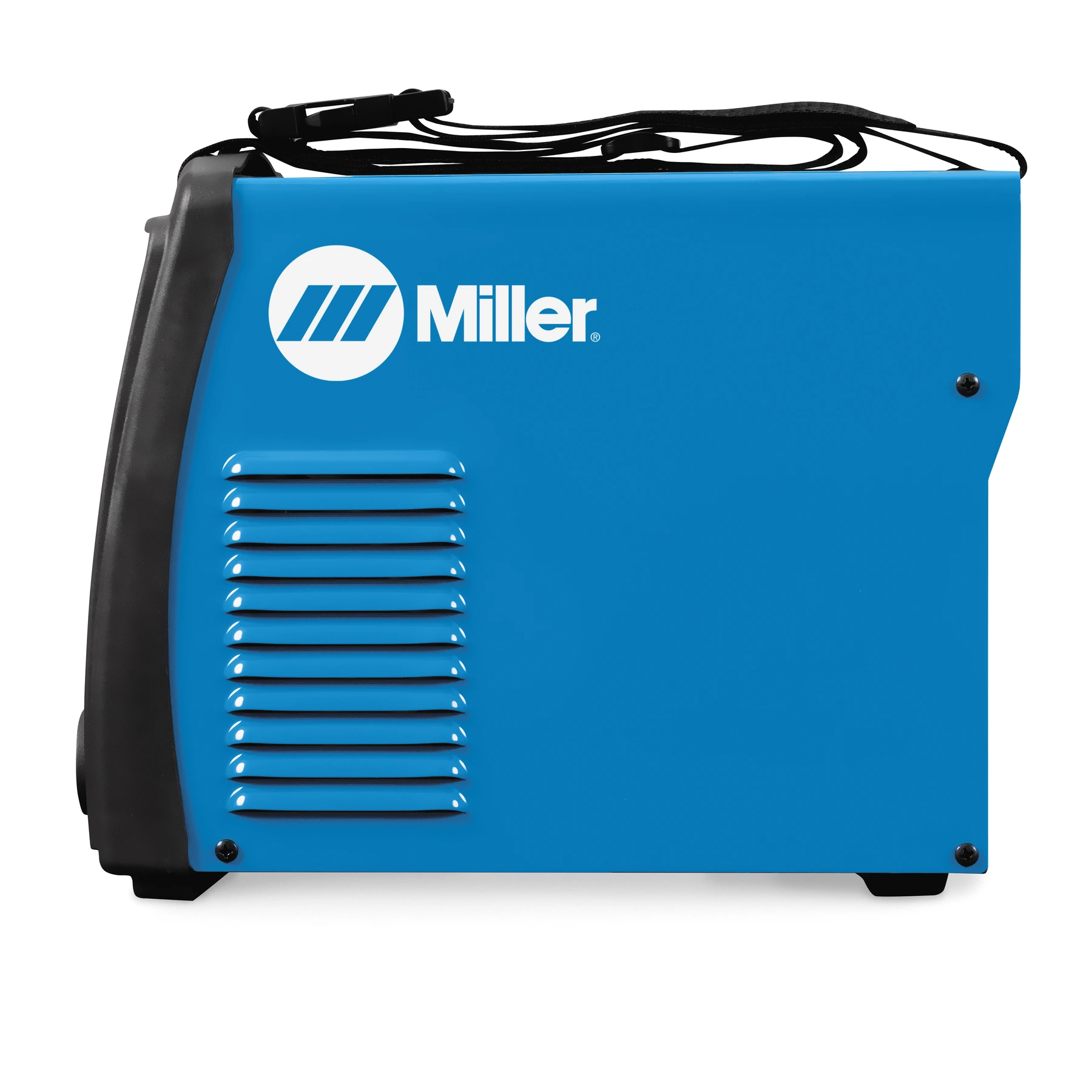

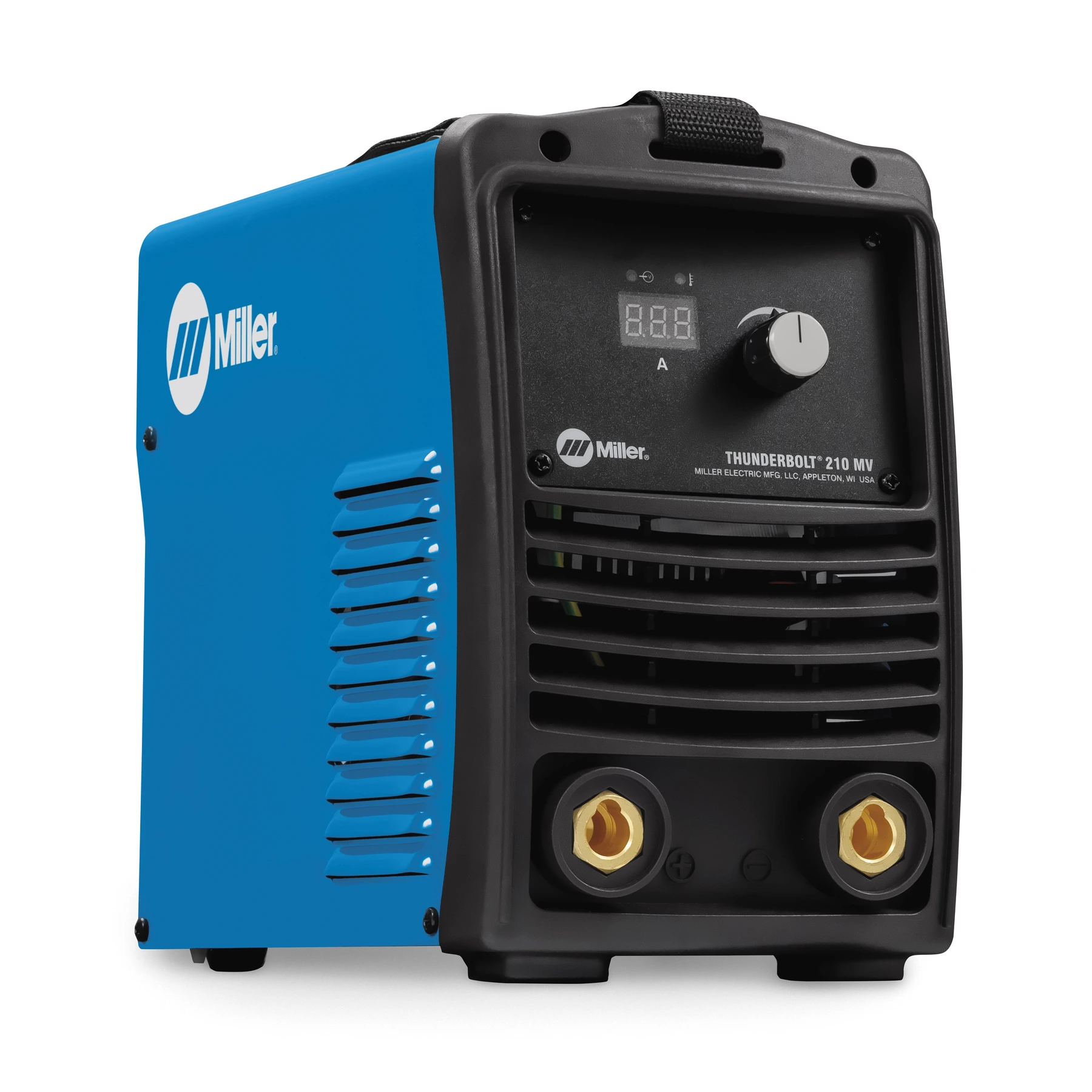

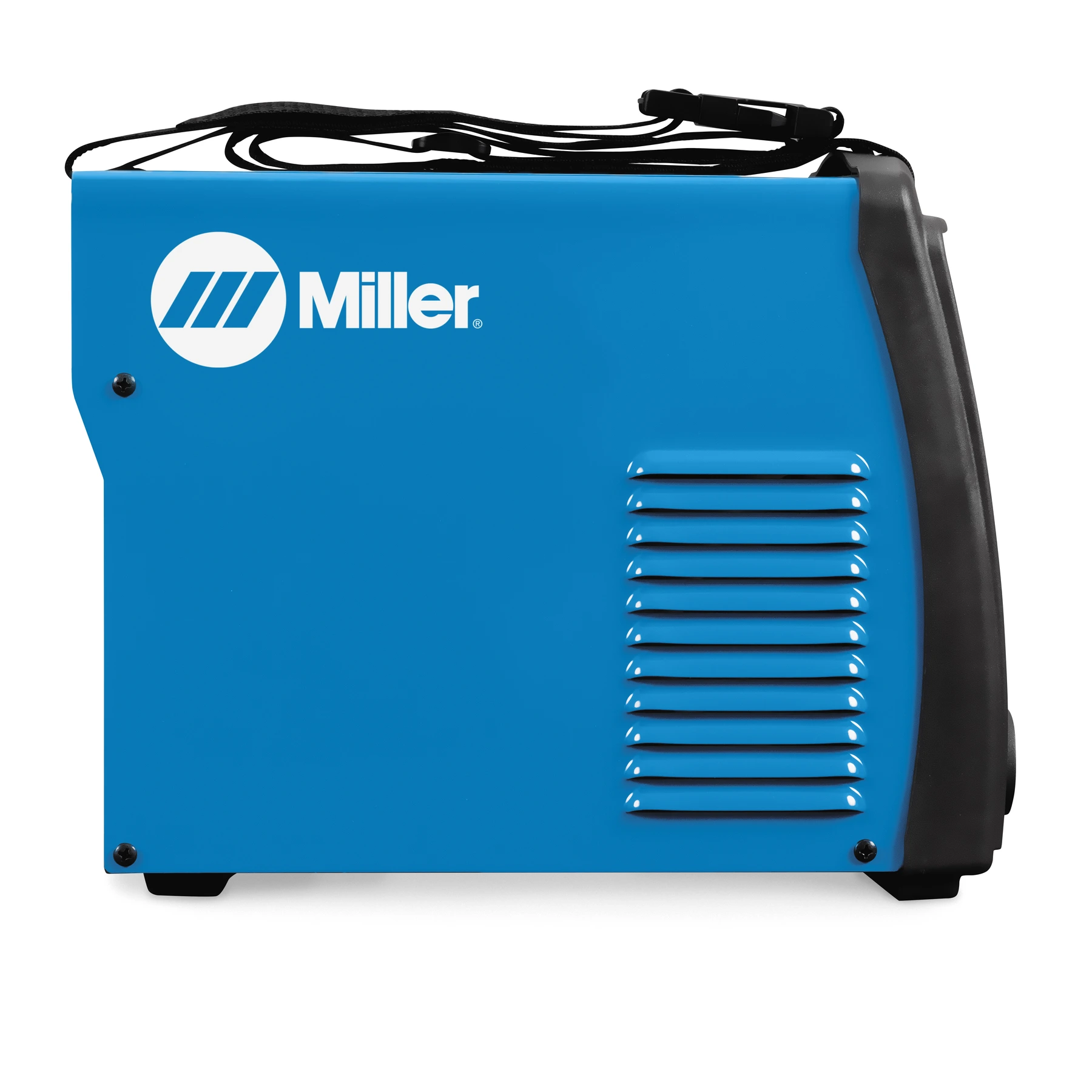

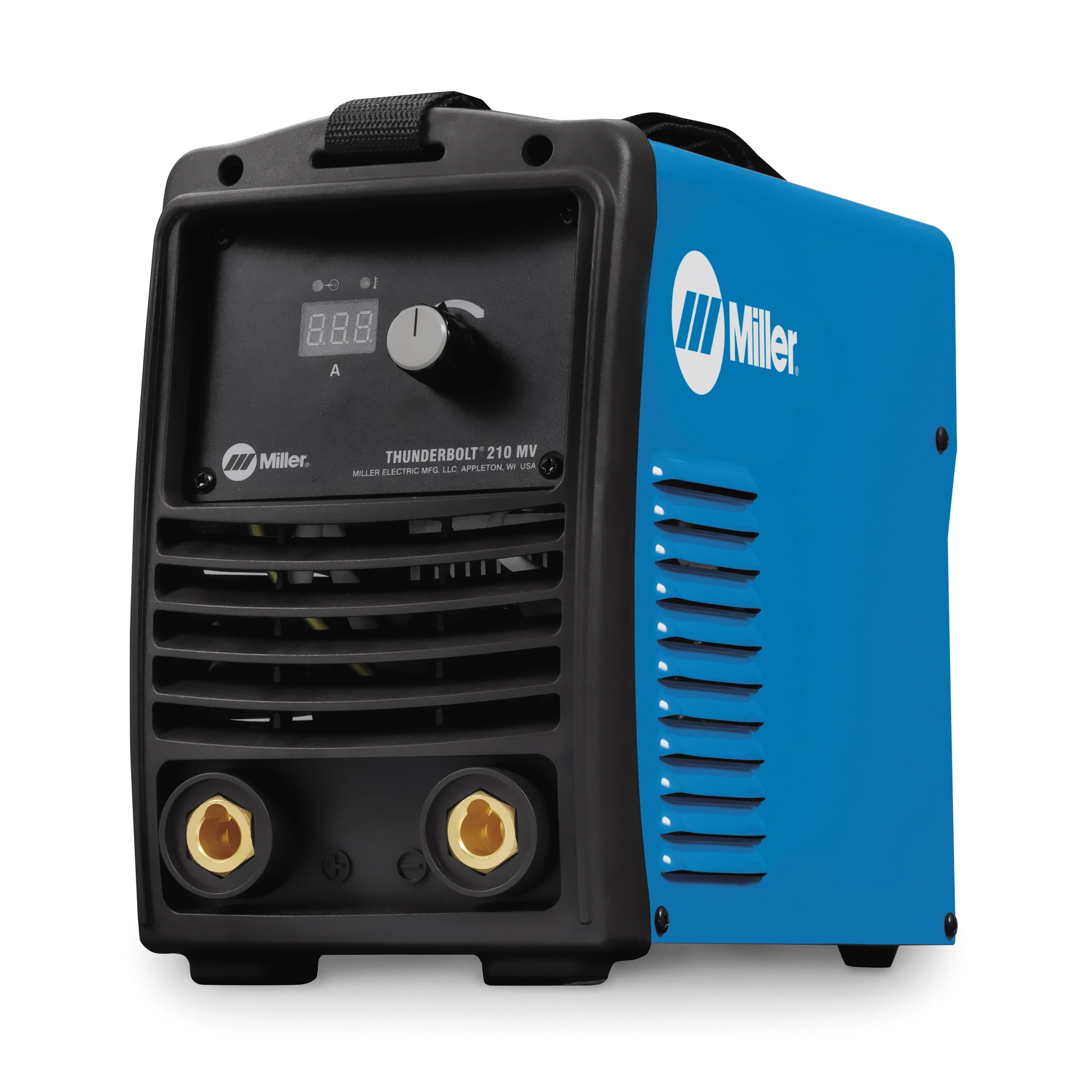

THUNDERBOLT® 210 MV STICK WELDING MACHINE
110-240 V Stick Welder. Dependable, portable, powerful unit under 14 lbs. Easy to use with a segmented display and single knob. Features: Simple user interface, Hot Start™ Technology, Dual-voltage.
| Technical Specifications | ||
|---|---|---|
| Processes | Stick (SMAW) | |
| Industrial Applications: |
|
|
| Input Power | 208/230/460 V or 575 V, 3-phase, 60 Hz 230 V, 1-phase, 60 Hz |
|
| Rated input voltage / Number of phases: | 120 V / 240 V, 1-phase | |
| Rated frequency: | 50/60 Hz | |
| Input amperage: |
120 V: 27.8 A; 240 V: 44.9 A
|
|
| Rated output current: | 120 V: 65 A / 50 A; 240 V: 135 A / 105 A | |
| Rated duty cycle: 120 V: | 60% at 65 A / 100% at 50 A; 240 V: 60% at 135 A / 100% at 105 A | |
| Rated output no-load voltage: | Stick: 9.5 V | |
| Output current range: | Stick: 10–110 A (120 V); 10–210 A (240 V) | |
| Dimensions (W × D × H): |
6.3 × 13.4 × 10.2 in. (160 × 340 × 260 mm) | |
| Weight: | 13 lb. (5.9 kg) | |
Features

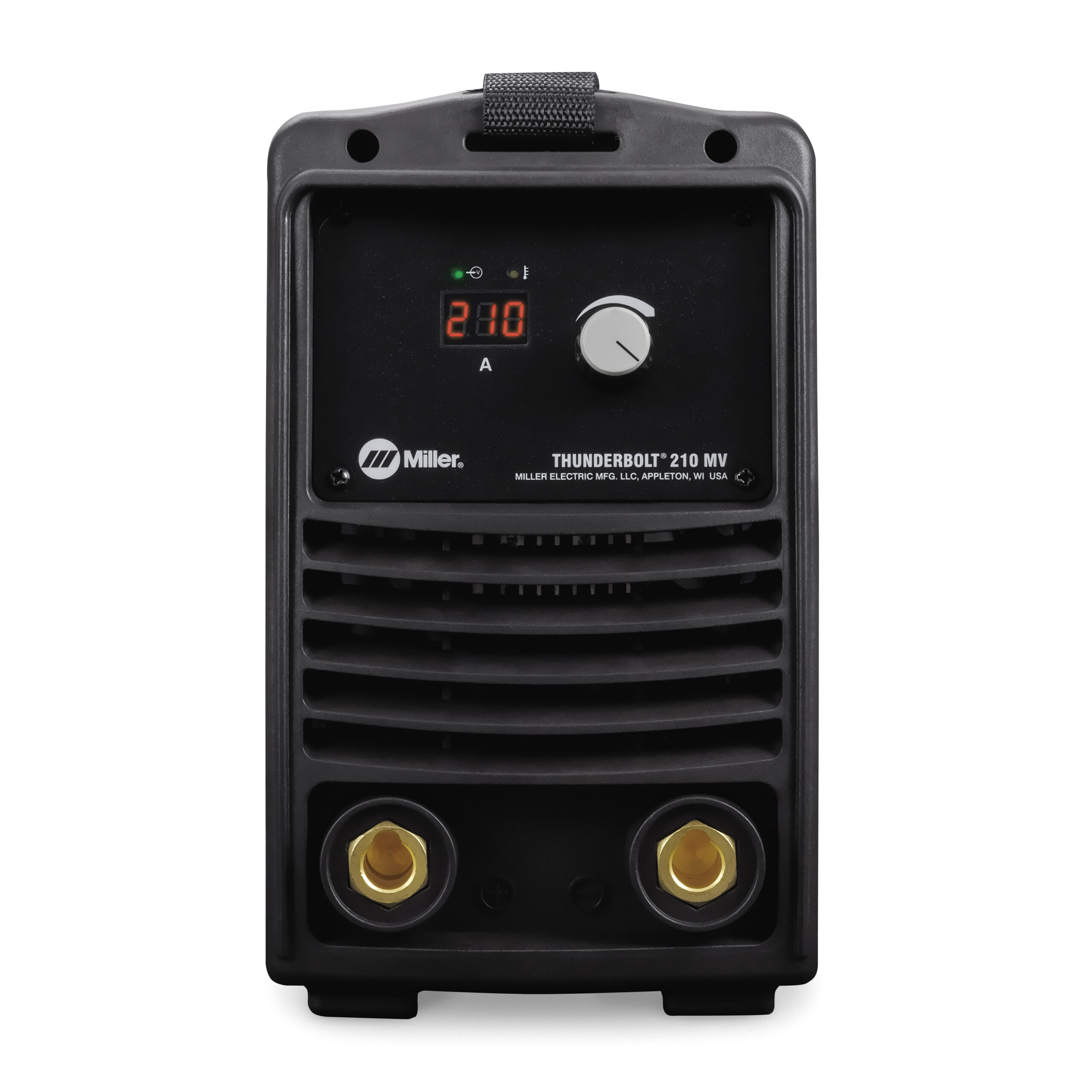

Simple user interfaceDigital segmented display and single knob increase fine tuning and reduce complexity when setting weld parameters.
|
Hot Start™ TechnologyAdaptive control provides positive arc starts without sticking.
|

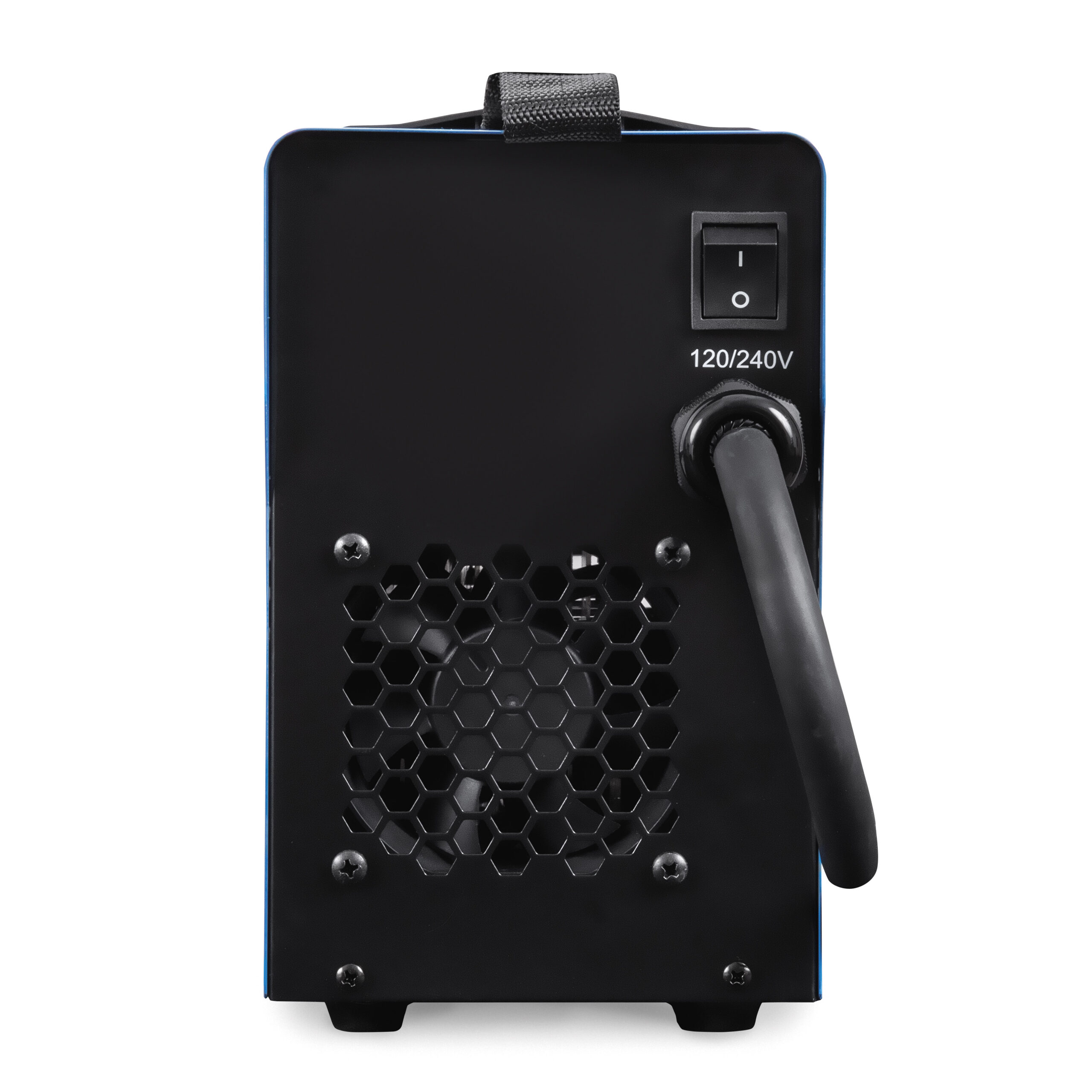

Dual-voltageAllows you to connect to 120 or 240V receptacles without tools.
|
Adjustable shoulder strapEasy for you to carry and move.
|
Infinite amperage controlPrecise and accurate amperage control that adjusts output by one-amp increments.
|
|
|
- Warranted: three years
